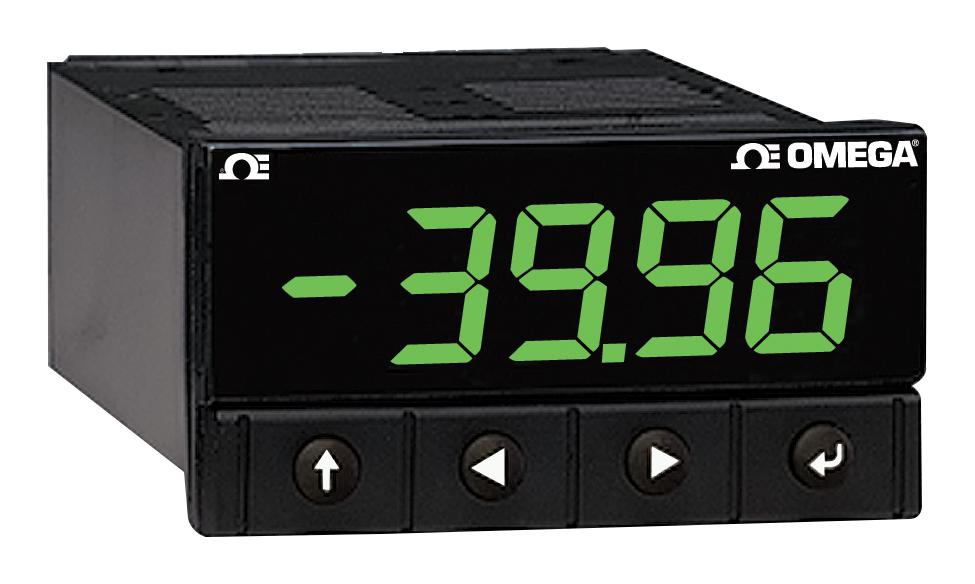

OMEGA DP32PT Digital Process Meter
The DP32PT series digital panel meters offer high performance and versatile process measurement capabilities, including thermocouples, RTDs, thermistors, and analog signals. Featuring a bright 3-color LED display with wide viewing angles and firmware configurability, these units support multiple input types, digital communication protocols, and optional alarm relays, making them ideal for industrial temperature and process monitoring. They come with robust certifications, multiple sizes, and configurations, including NEMA 4X/IP65 front bezel options, ensuring durability and ease of integration in demanding environments.
OMEGA DP32PT Digital Process Meter Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Voltage Input Range: -100 to 100 mV, -1 to 1 V, -10 to 10 Vdc, scalable
- Current Input Range: 4 to 20 mA, 0 to 24 mA, scalable
- Thermocouples Supported: J, K, T, E, R, S, B, C, N
- RTD Types: 100, 500, 1000 Ω Pt sensors, 2, 3, or 4-wire, curves 385, 392, 3916
- Thermistors: 2252 Q, 5K Q, 10K Q
- Input Resolution: 0.1°C for temperature, 10 LV process
- Resolution: 24-bit sigma delta ADC, sampling rate 20/sec
- Display: 4-digit, 9 segment LED with 3-color programmable colors
- Power Supply: 90-240 Vac or 24 Vac/DC (low voltage option)
- Dimensions: Varies by model; DP32: 25.4 x 48 x 127 mm, DP16: 48 x 48 x 127 mm, DP8: 48 x 96 x 127 mm
- Environmental Conditions: 0 to 50°C, 90% RH non-condensing
- Communications: USB (standard), optional Ethernet (TCP/IP, web server), Serial (RS232/RS485, MODBUS)
- Alarm Outputs: 2 mechanical relays, programmable for high/low/band alarms
- Protection and Certifications: UL, cUL, CE, NEMA 4X/IP65 front bezel options
- Physical Connectivity: Screw terminals for serial, USB port, Ethernet RJ45, relays rated 250 Vac/30 Vdc at 3A
Buy the Omega DP32PT – Reliable Process Measurement for Industrial Applications
Order the Omega DP32PT digital process meter online today and improve your industrial temperature and process monitoring with a versatile, easy-to-set-up device. With advanced features like firmware configurability, multiple input options, bright LED display, and optional communication interfaces, this high-performance meter ensures accurate measurements and seamless integration. Perfect for demanding environments, it offers durability, flexible alarms, and certified safety standards. Invest in this reliable instrument now to enhance your automation and control systems effortlessly.
Buy Omega DP32PT now and experience unmatched reliability with versatile inputs, rapid sampling, and robust communication options designed for industrial processes.
Frequently Asked Questions
Where can I buy OMEGA DP32PT?
You can click on the BUY or RFQ button to purchase DP32PT from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP32PT?
You can download the DP32PT datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP32PT?
OMEGA
