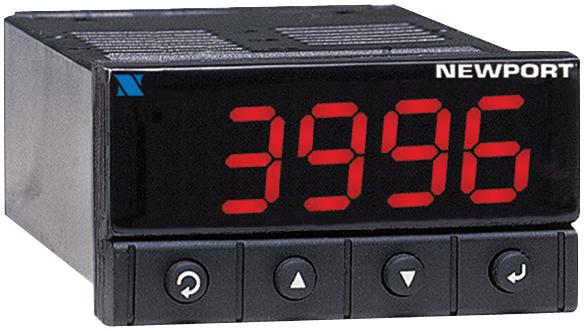

OMEGA CNI3244 Temperature Process Controller
The Omega CNi32 Series temperature and process controller offers high precision, digital display, customizable LED colors, and versatile input options including thermocouple, RTD, voltage, and current. Compact and easy to configure, it features built-in excitation, multiple output configurations like relays, SSR, analog, and fast response times. Suitable for industrial temperature control and process management with advanced communication options, the CNi32 provides reliable, accurate measurements, programmable digital filtering, and robust environmental tolerance, making it ideal for automation, calibration, and manufacturing environments.
OMEGA CNI3244 Temperature Process Controller Specifications:
- Accuracy: +0.5°C temperature; 0.03% reading
- Resolution: 1°/0.1°; 10 uV process
- Temperature Stability: RTD 0.04°C/°C, TC 0.05°C/°C @ 25°C
- Input Types: Thermocouple, RTD, analog voltage, current
- Thermocouple Types (ITS 90): K, T, E, R, S, B, C, N, L (J DIN)
- RTD Inputs: 2-, 3-, or 4-wire Pt sensors, 0.00385 or 0.00392 curve
- Voltage Input Range: 0–10 V or 0–100 mV
- Current Input: 0–20 mA
- Input Impedance: 10 MΩ for voltage inputs, 1 MΩ for current
- Output Types: SPDT relay, SSR, analog voltage/current, retransmission
- Control Action: PID with manual or auto operation, reverse or direct mode
- Network Options: RS232, RS485, Ethernet with TCP/IP
- Power Supply: 90–240 Vac, optional 24 Vac
- Ambient Temp Range: 0–55°C, 90% RH non-condensing
- Enclosure: NEMA 4X / IP65 front bezel
- Dimensions (Series 32): 25.4 H x 48 W x 127 mm D
- Panel Cutout (Series 32): 22.5 H x 45 W mm
Buy the Omega Series CNi32 Temperature Process Controller: CNI3244
Purchase the Omega CNi32 Series temperature and process controller online today and enjoy a highly accurate, programmable device ideal for industrial automation. Featuring versatile inputs, built-in excitation, and multiple output options including relays and SSR, this compact controller is designed for easy configuration and robust performance. It supports advanced communications via RS232, RS485, and Ethernet, making integration seamless for control, monitoring, and calibration tasks. Durable, reliable, and suitable for harsh environments, the CNi32 ensures flawless temperature and process management in manufacturing and automation applications.
Get Omega CNi32 Series CNI3244 today—built for precise temperature and process control in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA CNI3244?
You can click on the BUY or RFQ button to purchase CNI3244 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CNI3244?
You can download the CNI3244 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CNI3244?
OMEGA
