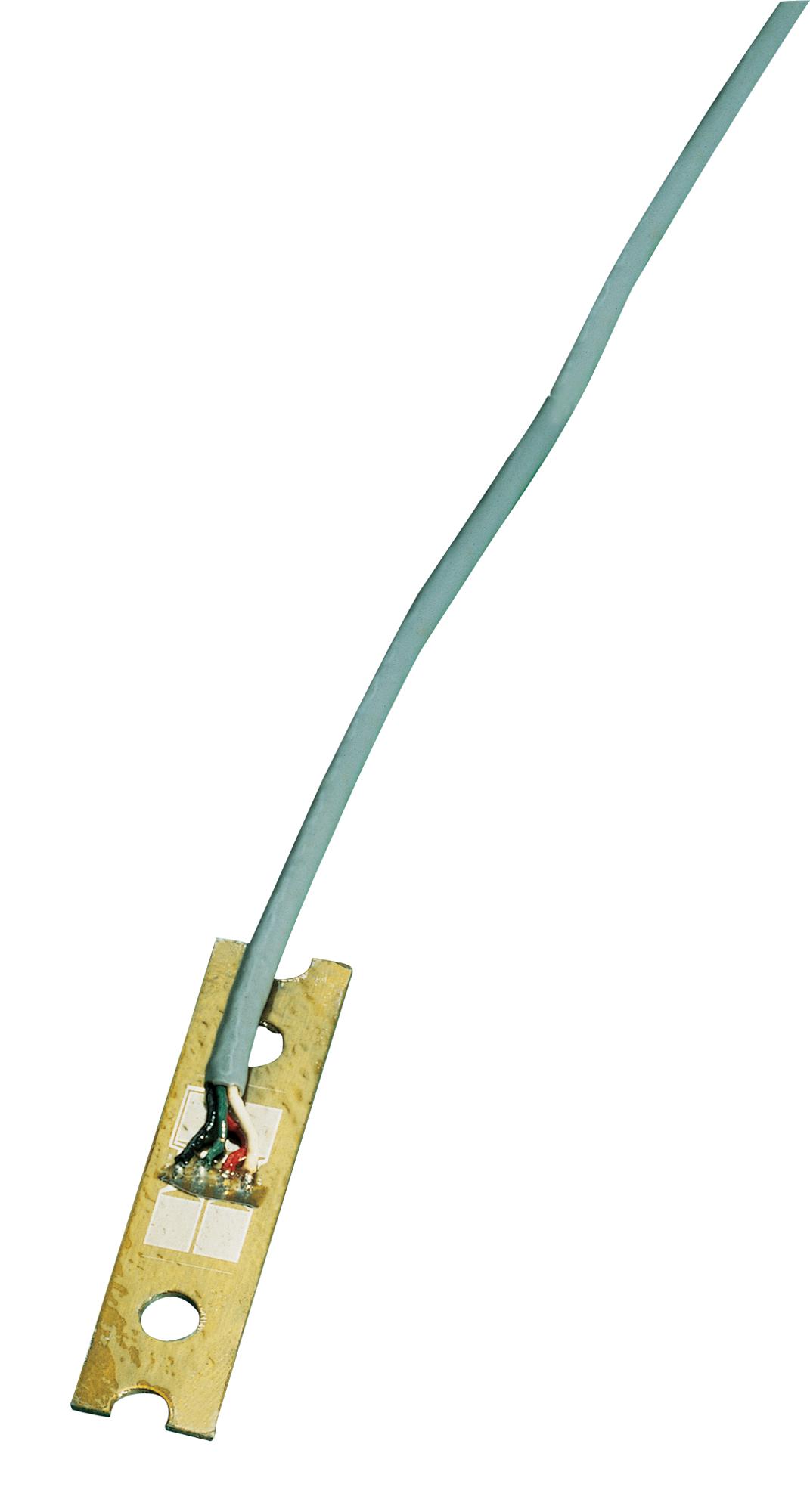

OMEGA LCL020 force sensor
The LCL-020 from Omega is a full-bridge, thin-beam load cell designed for accurate force measurements in various applications. It features a thermally matched, fully active strain gauge that provides excellent stability, reliability, and temperature compensation. Suitable for medical instrumentation, home appliances, process control, robotics, and automotive uses, this load cell is capable of measuring small loads with high precision. It includes a laminated strain gauge with built-in balancing and compensating elements for optimal performance. The device has a 9.07 kg (20 lb) capacity, operates on excitation voltages up to 12 VDC, and provides a rated output of 2 mV/V ±20%. It supports an operating temperature range from -54°C to 93°C and has an insulation resistance of 1000 MΩ at 50 VDC. The urethane-coated sealing ensures durability under overload conditions up to 150% FS. It comes with a shielded PVC 4-conductor lead wire measuring 9 inches, suitable for force or displacement sensing in various instrumentation applications.
OMEGA LCL020 force sensor Specifications:
- Excitation: 5 Vdc, 12 V max
- Rated Output: 2 mV/V ±20%
- Zero Balance: 0.3 mV/V
- Combined Error: 0.25% FS
- Operating Temperature: -54°C to 93°C
- Compensated Temperature Range: -7°C to 49°C
- Resistance (Input and Output): 1200 +300 QΩ
- Insulation Resistance: 1000 MΩ at 50 Vdc
- Seal: Urethane coated
- Safe Overload: 150% FS
- Full Scale Deflection: 0.25 to 1.27 mm
- Lead Wires: 9-inch shielded PVC, 4-conductor, 30 AWG
- Material: 301 SS for loads >816 gf, Beryllium copper for loads <816 gf
- Capacity: 20 lb (9.07 kg)
Buy the Omega Series LCL Force Sensor: LCL020
Experience the reliable and accurate force measurement capabilities of the Omega LCL-020 full-bridge thin-beam load cell. Designed to measure small forces with high stability, this sensor features a fully active, thermally matched strain gauge for consistent performance across various temperatures. Suitable for medical, industrial, robotics, and automotive applications, it operates on up to 12 VDC, with a rated output of 2 mV/V. The urethane-coated seal ensures durability under overload conditions, and the shielded PVC lead wire simplifies installation. Purchase online now to enhance your measurement solutions with proven quality and precision.
Get Omega LCL-020 today—built for precision and long-lasting durability in force measurement applications.
