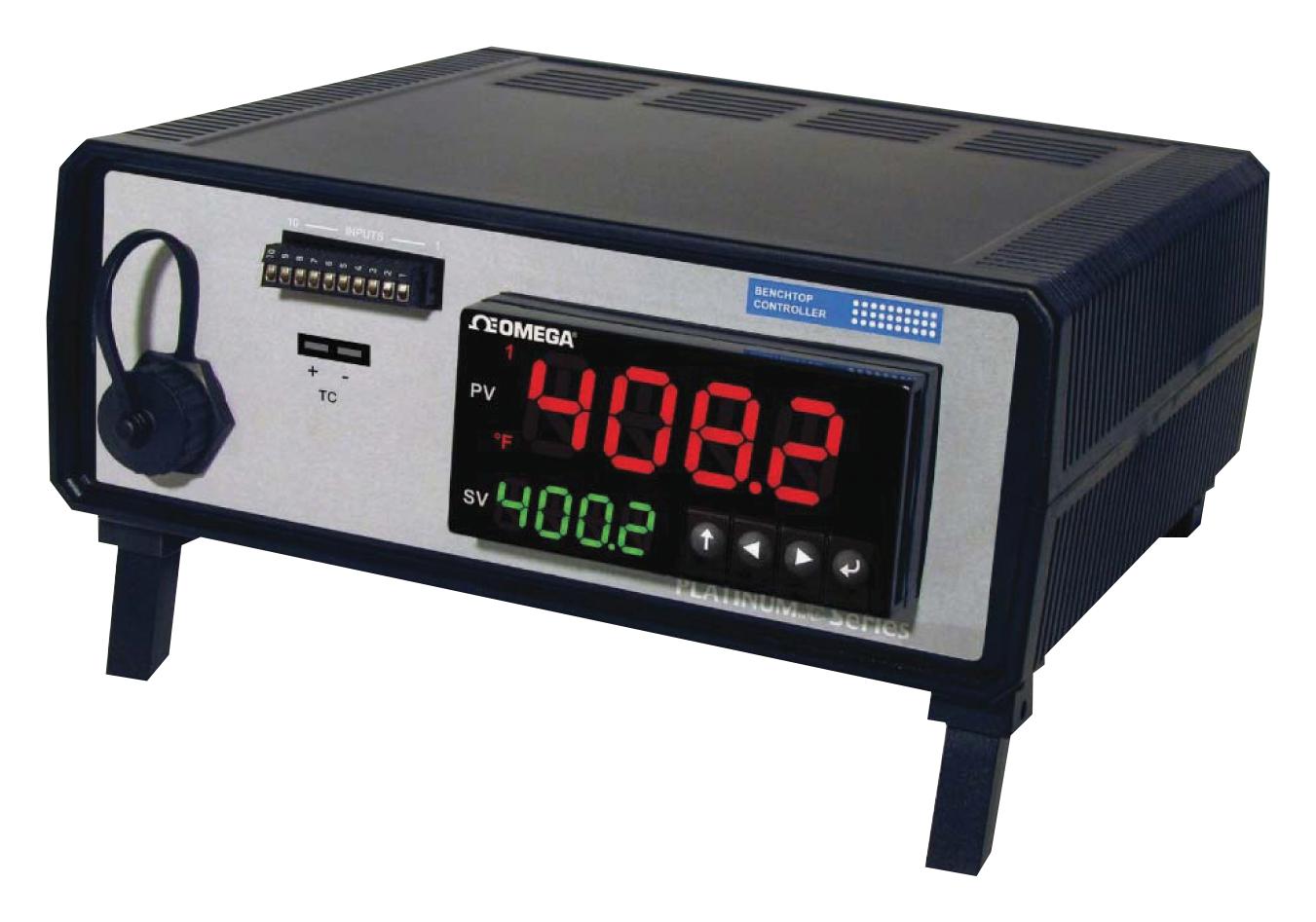

OMEGA CS8DPTC24EIPA Benchtop Digital Controller
The OMEGA CS8DPT Series is a versatile benchtop digital controller featuring a large color-changing display, universal inputs for thermocouples, RTDs, thermistors, voltage, current, and strain sensors. It offers simple configuration, high accuracy, internal 5A SSR control output, and dual display for setpoint and process real-time data. Optional Ethernet, RS232/485 communication, and external power supply options make this controller ideal for precise industrial and laboratory temperature and process control applications. Its robust design and extensive input compatibility ensure reliable, fast measurements with programmable filters and alarms.
OMEGA CS8DPTC24EIPA Benchtop Digital Controller Specifications:
- Power Supply: 90 to 240 Vac @ 50/60 Hz
- Dimensions: 236 W x 230 D x 108 mm H
- Weight: 1.13 kg
- Display: 4-digit, 9-segment LED, size 21 mm (83') and 10.2 mm (40') with programmable colors
- Input Types: Thermocouple, RTD (2-, 3-, 4-wire), Thermistor, Voltage, Current, Strain
- Thermocouple Types: J, K, T, E, R, S, B, C, N, L
- RTD: 100/500/1000Ω Pt sensors, 0.00385 or 0.00392 curves
- Thermistor: 22520, 5KΩ, 10KΩ
- Voltage Input: -100 to 100 mV, -1 to 1 Vdc, 0 to 10 Vde
- Current Input: 4 to 20 mA
- Control Output: Internal 5A SSR, 3A relay max
- Accuracy: 0.03% FS for RTD/thermocouple, 0.2°C thermistor
- Resolution: 1°/0.1°, 10 µV process
- Network: Ethernet 10/100, TCP/IP, HTTP, ARP supported
- Serial Communication: RS232/RS485, programmable baud rate 1200-115000
- Operating Temperature Stability: RTD 0.04°C/°C, Thermocouple 25°C cold-junction
- Additional features: Programmable digital filter, alarm, dual display with color change, external power options
- Certifications: CE, UL listed
Buy the OMEGA Series PLATINUM CS8DPT: CS8DPT-C24-EIP-A
Purchase the OMEGA Series PLATINUM CS8DPT benchtop digital controller online today and enjoy reliable, high-accuracy measurement and control. Featuring universal inputs, dual LED display, internal SSR control, and network connectivity options including Ethernet and serial communication, this portable device fits lab and industrial environments perfectly. Its programmable color display not only provides clear real-time data but also adapts to alarms by changing colors. Receive comprehensive technical support, fast delivery, and ensure your processes stay within set parameters with this advanced and easy-to-use controller.
Order your OMEGA Series PLATINUM CS8DPT digital controller with Ethernet today and ensure precise temperature and process control for your industrial systems.
