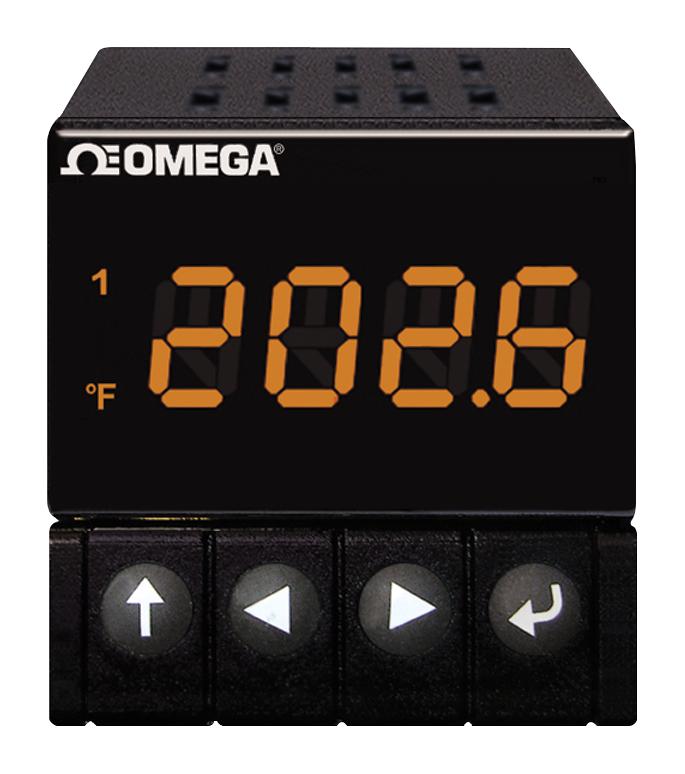

OMEGA DP16PTEIP Digital Panel Meter
The OMEGA PLATINUM Series DP16PT-EIP digital panel meter provides unparalleled flexibility in process measurement. Designed for ease of use, it features automatic hardware configuration recognition, eliminating the need for jumpers. The meter supports a wide range of inputs including thermocouples, RTDs, thermistors, DC voltage, DC current, and strain, with selectable decimal points for versatile engineering unit scaling. It also includes two configurable alarms with optional mechanical relays and isolated analog output, along with optional embedded ethernet and serial communications for data transmission and remote control. Ideal for industrial applications requiring precise and adaptable process monitoring.
OMEGA DP16PTEIP Digital Panel Meter Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Current Input: 4 to 20 mA, 0 to 24 mA scalable
- Voltage Input: -100 to 100 mV, -1 to 1 V, -10 to 10 Vdc scalable
- Thermocouple Input (ITS 90): K, J, T, E, R, S, B, C, N
- RTD Input (ITS 90): 100/500/1000 Ω Pt sensor, 3- or 4-wire; 385, 392, or 3916 curves
- Thermistor Input: 2252 Ω, 5K Ω, 10K Ω
- Strain Input: ±50 mV, ±100 mV
- Resolution: 0.1° temperature; 10 µV process
- A/D Conversion: 24-bit sigma delta
- Reading Rate: 20 samples per second
- Excitation: Firmware selectable (5, 10, 12, and 24 Vdc @ 25 mA)
- Alarm Outputs: SPDT Relay, Isolated Analog
- Communications: USB, Ethernet, RS232/RS485
- Display: 4-digit, 9 segment LED
- Dimensions: 48 H x 48 W x 127 mm D
Buy the DP16PT-EIP OMEGA Digital Panel Meter | myMectronic
Purchase the OMEGA DP16PT-EIP digital panel meter securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy OMEGA DP16PTEIP?
You can click on the BUY or RFQ button to purchase DP16PTEIP from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP16PTEIP?
You can download the DP16PTEIP datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP16PTEIP?
OMEGA
