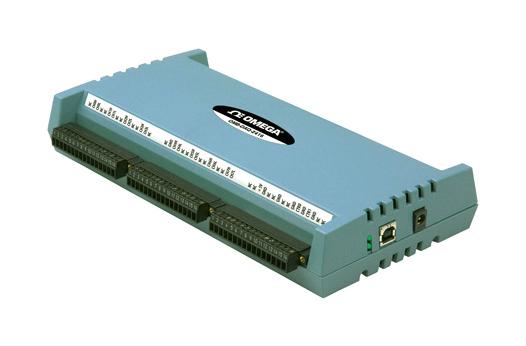

OMEGA OMBDAQ2416 Data Acquisition Module
The OMB-DAQ-2416 is a high-precision multi-function data acquisition module designed for USB interfaces. It features 24-bit sigma delta analog-to-digital converters, providing accurate voltage and thermocouple measurements with nine selectable voltage ranges. The device supports 16 differential or 32 single-ended analog inputs, expandable to 32 differential or 64 single-ended with an optional expansion module. It includes eight digital I/O lines, two 32-bit counters, and offers 500V isolation between I/O and host. The module operates at a maximum throughput of 1000 samples/second and features built-in cold junction compensation and open thermocouple detection. It comes complete with accessories including an AC power supply, USB cable, international plugs, and software support, making it suitable for precision measurement applications.
OMEGA OMBDAQ2416 Data Acquisition Module Specifications:
- A/D Converter Type: 24-bit sigma delta
- Data Rates: 3750, 2000, 1000, 500, 100, 60, 50, 25, 10, 5, 2.5 samples/sec
- Input Isolation: 500 Vdc min
- Common Mode Rejection: Thermocouple 110 dB; Voltage 90 dB
- Number of Channels: 16 differential/32 single-ended, expandable to 32 differential/64 single-ended
- Maximum Input Voltage: +30V (power on), +10V (power off)
- Input Impedance: 2 GΩ (power on), 390 Ω (power off)
- CJC Sensor Accuracy: ±0.15°C typical, ±0.5°C max
- Input Leakage Current: +10.6 nA (measurements), +20 nA (expansion)
- Analog Outputs: 4 channels, 16-bit, +10V range, accuracy ±16 LSB
- Digital I/O: 8 channels on main, 16 channels expansion, CMOS, max 20V, pull-up resistors
- Counters: 2 channels, 32-bit, event counter, max input voltage +20V, max frequency 1 MHz
Buy the Omega Series DAQ USB: OMBDAQ2416
Purchase the Omega Series Data Acquisition Module online today for accurate voltage and temperature measurements, expandable channels, digital I/O, counters, and unmatched thermal compensation. Designed for industrial precision, it adapts seamlessly to your measurement needs with robust features including 24-bit resolution, high sampling rates, and complete accessories. Order now to enhance your data acquisition setup with reliable, high-performance measurement solutions that are easy to connect, operate, and expand for various industrial and laboratory applications.
Get Omega Series DAQ USB module today—built for precision and long-lasting durability.
