OMEGA DPF66 Digital Ratemeter and Batch Controller
This is a ratemeter and batch controller equipped with two separate 5A SPDT relays for rate alarms or batching applications. It features front-panel programming and scaling, allowing users to set and adjust the rate and total in a single unit. The device can be reset remotely or from the front panel, with relay operation that can either latch or auto-recycle based on user preference. Zero and span are adjustable to customize the readings. The package includes the ratemeter and batch controller, mounting bracket, gasket, screws, and an operator's manual.
OMEGA DPF66 Digital Ratemeter and Batch Controller Specifications:
- Regulated Power Output: +5%
- Analog Output Optional Accuracy: +0.15% FS for rate and total
- Operating Temperature: 5 to 54°C (41 to 129°F)
- Storage Temperature: -40 to 93°C (-40 to 199°F)
- Power Supply: 94 to 126 Vac, 50/60 Hz or 12 to 24 Vdc
- Input Types: 4-20 mA, 0-20 mA, 0-5V, or 1-5V
- Display: 15 x 8 mm (0.6 x 0.32") LED, six digits for total, five for rate
- Relays: 2 SPDT relays, 5 A @ 250 Vac, latch or auto-recycle
- Communication Options: RS232 and RS422
- Physical Size (Panel Cutout): 45 H x 92 W mm (1.772 x 3.622 inches), Depth: 112 mm (4.4 inches)

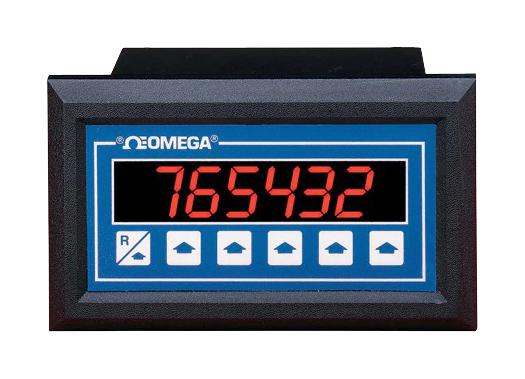

Buy the Buy DIN RATEMETER Part Number DPF66 Online
Order the DIN RATEMETER and batch controller DPF66 online today to enhance your flow measurement processes. Featuring front-panel programming, adjustable zero and span, dual relays for flexible operation, and RS232/RS422 communication, this device provides accurate rate and total measurement ideal for industrial applications. Its rugged design includes mounting brackets and a user manual, ensuring quick installation and reliable operation in demanding environments. Improve your process control with this versatile, signal-output capable, and easy-to-configure flow measurement instrument.
Get DIN RATEMETER DPF66 today—designed for precise flow measurement with remote reset and dual relays for accurate batching and rate alarms.
Frequently Asked Questions
Where can I buy OMEGA DPF66?
You can click on the BUY or RFQ button to purchase DPF66 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPF66?
You can download the DPF66 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPF66?
OMEGA
