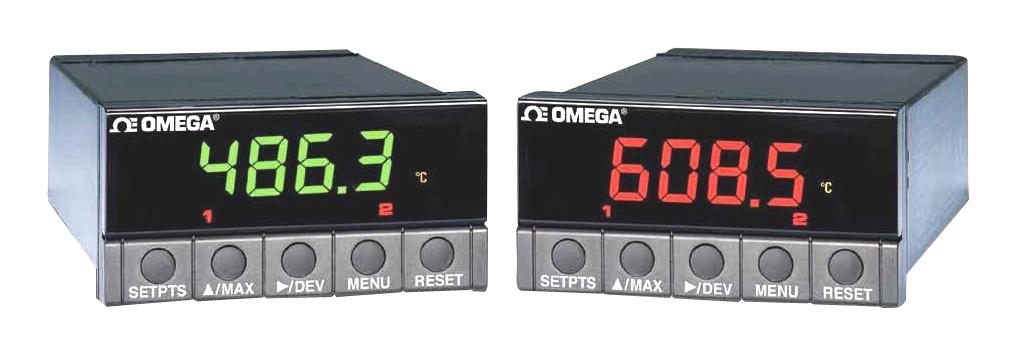

OMEGA DP25BEAR Digital Panel Meter
The DP25BEAR series digital panel meters provide highly accurate measurement and control for temperature, process variables, and strain using thermocouple, RTD, or voltage/current inputs. The meters feature a bright, programmable color display and a 4-digit, 9-segment LED readout for clear visibility. They include options for relay outputs, isolated or non-isolated analog outputs, and microprocessor-based precision. Suitable for industrial environments, these meters are designed with easy front-panel scaling, built-in excitation for transducers, and compliance with international safety standards, making them ideal for automation and process control applications.
OMEGA DP25BEAR Digital Panel Meter Specifications:
- Display: 4-digit, 9-segment, 21 mm (0.83") high LED, color programmable (red, amber, green)
- Analog-to-Digital Technique: Dual slope, 15-bit resolution
- Input Types: Thermocouples (J, K, T, J DIN), RTD Pt 100, process (DC voltage/current), strain gages
- Relay Outputs: Optional 2 form C (SPDT), 5 A 250 V, programmable alarms
- Analog Output: Optional 0-10 V, 4-20 mA or 0-20 mA, scalable or proportional control
- Power Supply: 115 Vac or 230 Vac +10%, or 10-32 Vdc/26-56 Vdc, max 8-11 W
- Isolation: Up to 2500 V dielectric strength, meets EN61010 standards
- Operating Environment: 0°C to 50°C, 90% humidity @ 40°C, non-condensing
- Dimensions: 48 mm H, 96 mm W, 152 mm D; Panel cutout: 45 mm H x 92 mm W
Buy the Omega Series DP25B Temperature and Process Meter: DP25BEAR
Order the Omega DP25BEAR digital panel meter online today to enhance your industrial process control with highly accurate temperature, voltage, and strain measurements. Featuring a bright, customizable display, multiple input options including thermocouples and RTDs, and optional relay and analog outputs, this versatile instrument is perfect for demanding industrial environments. Easy front-panel programming and built-in excitation make setup a breeze. Ensure your system’s reliability and performance by purchasing this robust, high-precision meter online now—ideal for automation, testing, and monitoring applications.
Buy Omega DP25BEAR now and experience unmatched reliability and precision in temperature and process monitoring with versatile display and relay options.
Frequently Asked Questions
Where can I buy OMEGA DP25BEAR?
You can click on the BUY or RFQ button to purchase DP25BEAR from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP25BEAR?
You can download the DP25BEAR datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP25BEAR?
OMEGA
