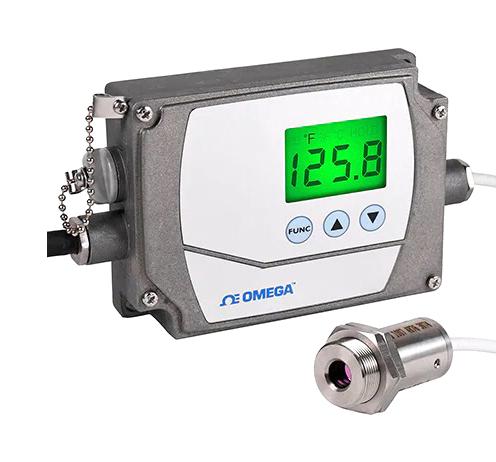

OMEGA OSAO25080190 Infrared Temperature Sensor
The OSAO-Series infrared sensors are high-performance, adjustable devices designed for temperature measurement from 0°C to 1800°C, featuring fast response times down to 2 milliseconds and multiple field of view options including 2:1, 15:1, 20:1, 40:1, and 80:1. Equipped with a built-in LCD display, keypad for easy calibration, and USB 2.0 digital output, these sensors come with laser targeting for precise installation. Optional accessories include water-cooling jackets, air purge units, and customizable mounting solutions, making them suitable for demanding industrial applications requiring accurate non-contact temperature measurement.
OMEGA OSAO25080190 Infrared Temperature Sensor Specifications:
- Temperature Range: 0°C to 1800°C depending on model and FOV
- Spectral Response: 8...14 um (models OS-AO50 and OS-AO50H), 1.6 um (model OS-A0250)
- Photodetector Type: Thermopile (OS-AO50, OS-AO50H), InGaAs (OS-A0250)
- Field of View (FOV): 2:1, 15:1, 20:1, 40:1, 80:1
- Emissivity Range: 0.1 to 1.2 adjustable (OS-AO50/50H), 0.1 to 1.0 (OS-A0250)
- Response Time: 2 ms (OS-A0250), 20 ms (OS-AO50/50H), adjustable up to 10 sec
- Accuracy: ±1% of measured value or ±3°C (up to 1500°C), ±0.4% above 1500°C
- Repeatability: ±1°C, ±0.06°C/°C coefficient
- Output: 0-20mA, 4-20mA, 0-10V, Thermocouple K or J, digital USB 2.0
- Operating Temp. Range: Sensor head up to 180°C, electronic box up to 70°C
- Housing: Sensor head stainless steel, electronic box zinc steel
- Protection Class: IP65
- Power Supply: 12V-28V DC, 24V DC, optional reverse polarity protection
- Weight & Dimensions: 600g, 112.5mm x 82.5mm x 33mm
- Accessories include water-cooling jacket, air purge unit, adjustable mount, communication cable, and software
Buy the Omega Series Infrared Temperature Sensor: OSAO25080190
Discover the precision and versatility of the Omega infrared temperature sensor OSAO25080190. Featuring adjustable emissivity, multiple FOV options, fast response times, and digital outputs, this sensor is ideal for accurate non-contact temperature measurements in industrial environments. Its built-in LCD display and user-friendly keypad make calibration and configuration simple, while optional accessories like water-cooling jackets and air purge units expand its functionality for demanding applications. Purchase online now to upgrade your temperature sensing capabilities with this high-performance infrared sensor.
Order your Omega Series infrared temperature sensor OSAO25080190 today and enhance your industrial temperature measurement accuracy with reliable, high-performance technology.
