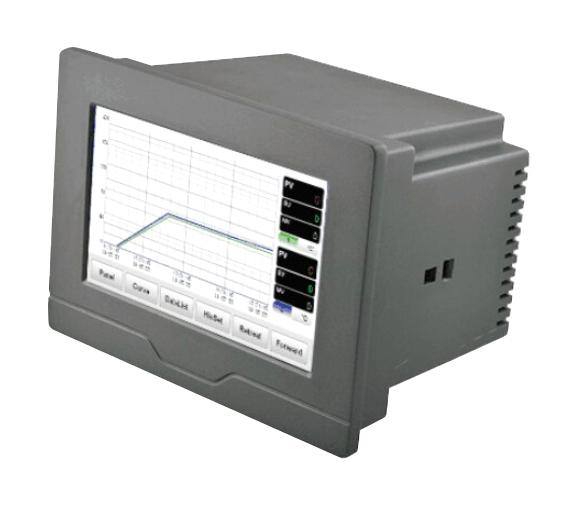

OMEGA RDA520TC Paperless Recorder
The RDA Paperless Recorder Series by Omega is a cost-effective, large-format touch screen data logger that consolidates measurement, display, alarm, and data logging in a compact, easy-to-install device. It supports various input configurations including thermocouples and RTDs, with independent settings and advanced functions such as square-root, multiplication, addition, and subtraction. Features include a 5-inch color TFT touchscreen, 2 isolated inputs, dual alarm setpoints per channel, real-time trend display, internal 150MB storage, and fast response times under 1.5 seconds. Its slim design and low power consumption make it ideal for space-limited environments.
OMEGA RDA520TC Paperless Recorder Specifications:
- Display Size: 5 inches (127mm)
- Resolution: 800*480
- Display Type: Color TFT True Color with backlit LED
- Input Type: Two isolated thermocouple or RTD inputs per channel
- Measurement Accuracy: 0.2% FS + 1 digit
- Input Configurations: Independent channel settings with square-root, multiplication, addition, subtraction functions
- Alarm Setpoints: 2 per channel
- Sampling Rate: Maximum 1 Hz
- Memory Storage: 150MB internal
- Power Consumption: Less than 5W
- Physical Dimensions: 5.71 x 4.13 x 3.94 inches
- Weight: 0.55 kg
- Response Time: ≤1.5 seconds (depending on filter settings)
- Operating Temperature: -10°C to +60°C
- Environmental Humidity: Up to 90% RH
- Input Types: Pt100, Cu50, K, S, R, E, J, T, B, N, WRe3–WRe5, WRe5–WRe26
- Isolation Voltage: 2300VDC between power, relay, or signal terminals
- Power Supply: 100-240VAC, 50-60Hz
- Cooling Method: Natural air cooling
Buy the Omega Series RDA Paperless Recorder: RDA520TC
Purchase the Omega RDA520TC paperless recorder online today and enjoy a highly reliable, easy-to-install measurement solution with a large 5-inch color TFT display, configurable inputs supporting thermocouples and RTDs, fast response times, alarm functions, and USB data export. This slim device offers 150MB internal storage, real-time trend views, and independent channel settings for accurate, real-time data logging suitable for demanding industrial environments. Order now and optimize your measurement processes with ease and confidence.
Buy Omega RDA520TC now and experience unmatched reliability and performance in industrial measurement and data logging.
Frequently Asked Questions
Where can I buy OMEGA RDA520TC?
You can click on the BUY or RFQ button to purchase RDA520TC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part RDA520TC?
You can download the RDA520TC datasheet or visit the OMEGA website for support.
Who is the manufacturer of RDA520TC?
OMEGA
