OMEGA DP25BTCR Process and Thermocouple Meter
The DP25B series is a versatile DIN-sized panel meter designed for strain measurement, process monitoring, and thermocouple inputs. Featuring a bright, programmable 4-digit display in red, amber, or green, it provides high accuracy with dual slope A/D conversion, automatic polarity detection, and a response time of 2 seconds. Optional dual 5A relays with adjustable deadband and isolated or non-isolated analog outputs enhance its functionality for control and retransmission tasks. Its rugged design includes a NEMA 4 bezel, suitable for demanding industrial environments, ensuring precise, reliable measurements across various applications.
OMEGA DP25BTCR Process and Thermocouple Meter Specifications:
- Display: 4-digit, 21 mm bright LED (red, amber, or green), programmable colors
- Analog-to-Digital Technique: Dual slope
- Internal Resolution: 15 bit
- Response Rate: 3/second
- Step Response: 2 seconds
- Relay Outputs: Two Form C relays rated 5 A 250 Vac, programmable for alarms
- Analog Output: 0 to 10 V, 4 to 20 mA, or 0 to 20 mA, scalable for control or retransmission
- Power Supply: 115 Vac or 230 Vac +10%, 10 to 32 Vdc, 26 to 56 Vdc (max 8 W to 11 W)
- Input Types: Thermocouple J, K, T, DIN, RTD, process DC voltage/current, strain gauge
- Thermocouple Temperature Ranges: J -210 to 760°C, K -270 to 1372°C, T -210 to 400°C, DIN J -200 to 900°C
- RTD: 100 Ω Pt, -200 to 850°C, +/- 0.5°C accuracy
- Environmental: Operating 0 to 50°C, storage -40 to 85°C, humidity up to 90%
- Dimensions: 48 mm high x 96 mm wide x 152 mm deep
- Panel Cutout: 45 mm high x 92 mm wide
- Isolation: up to 2500 V transient, dielectric strength
- Protection: NEMA 4 front bezel, overvoltage protection 240 Vrms

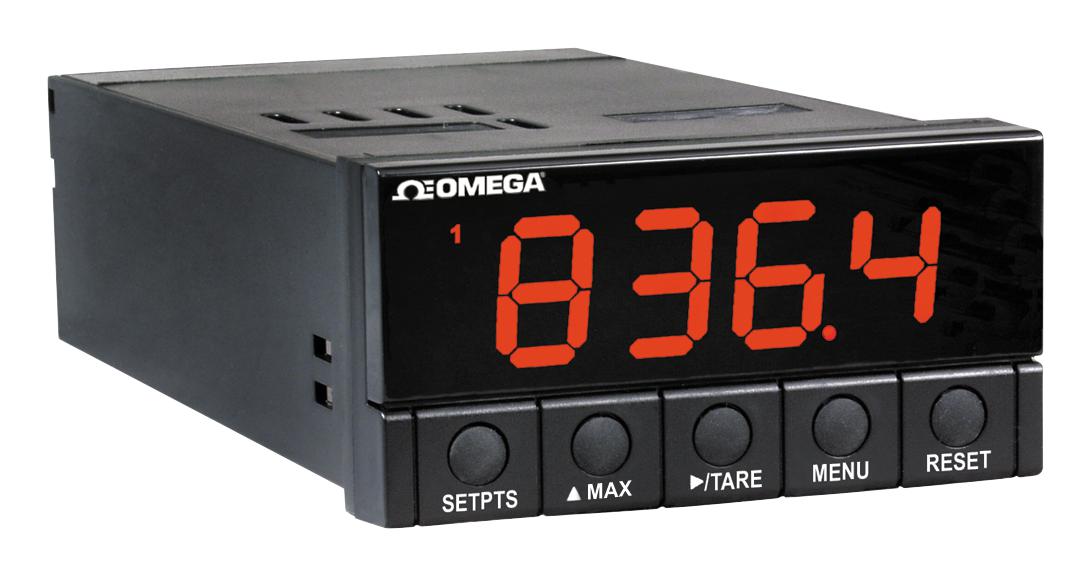

Buy the Buy Omega DP25B Series Thermocouple Process Strain Meter Part Number DP25BTCR Online
Experience unmatched accuracy with the Omega DP25B series, a DIN-sized panel meter designed for strain, process, and thermocouple inputs. It features a bright, programmable LED display in red, amber, or green, with options for relays and analog output. Suitable for industrial environments, its rugged design includes a NEMA 4 bezel, dual slope A/D conversion, and an automatic polarity detector, ensuring reliable and precise measurement performance in demanding applications. Easy to install and configure, it is ideal for control and monitoring systems.
Get Omega DP25B series thermocouple, process, and strain meters today—built for precision, durability, and versatile industrial measurement applications.
