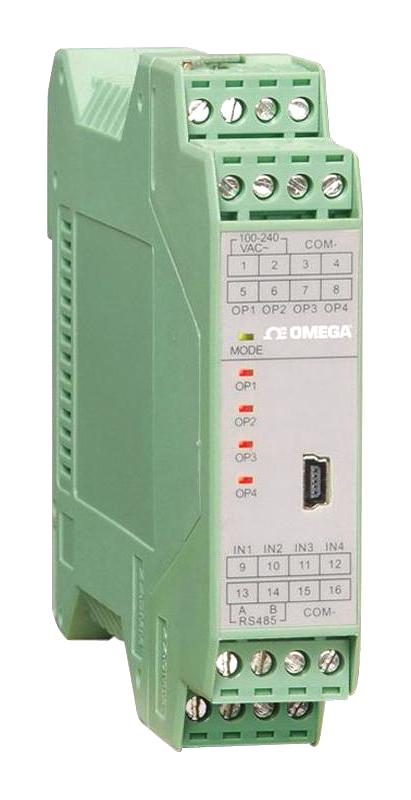

OMEGA TXDIN7024V Dual Channel Temperature Transmitter
The TXDIN70 series is a DIN rail-mounted two-channel temperature transmitter and signal isolator ideal for industrial temperature measurement. It supports various thermocouples, RTDs, and voltage inputs, with auto reference junction compensation and configurable input ranges. Each channel features digital filtering with adjustable filtering levels, providing isolated current outputs of 4 to 20 or 0 to 20 mA. Its compact design measures only 22.5mm wide, operates on universal power supplies (100-240 Vac or 24 Vdc), and can be easily configured via the E8 handset display. Suitable for precise, reliable temperature signal transmission in industrial environments.
OMEGA TXDIN7024V Dual Channel Temperature Transmitter Specifications:
- Input Types: Thermocouple (K, S, R, E, J, T, B, N, WRe5-WRe26), Pt100, Cu50 RTD, Voltage (0-20 mV, 0-60 mV, 0-100 mV, 0-1 V, 0.2-1 V)
- Input Ranges: Thermocouples from -200°C to 2300°C depending on type, RTD -200°C to 900°C, Voltage as specified
- Output Range: 0 to 22 mA with maximum voltage 11 V, accuracy 0.3% full scale plus 1 digit
- Power Supply: 100-240 Vac or 24 Vdc, power consumption under 3W
- Operating Temp: -10°C to 60°C, Humidity: up to 90% RH
- Dimensions: 100 mm H x 22.5 mm W x 100 mm D, weight: 85 g
- Isolation Voltage: 2300 Vdc (power, input, output)
- Temperature Drift: <0.015% FS/°C
- EMC Compliance: IEC61000-4-4 and IEC61000-4-5 standards
- Certification: CE, CE marking
- Model Variants: TXDIN70 for standard, TXDIN70-24V for 24 Vdc power, TXDIN70-DISPLAY for external display
Buy the OMEGA Series TXDIN70 Temperature Transmitter: TXDIN70
Purchase the OMEGA TXDIN70 series online today and enhance your process accuracy with this reliable DIN rail-mounted temperature transmitter. It supports multiple thermocouple types, RTDs, and voltage inputs, with configurable ranges, digital filtering, and isolation for signal integrity. Its compact design fits seamlessly into industrial control panels, providing precise temperature measurement and transmission. Compatible with universal power supplies, simple configuration via the external display, and compliance with EMC standards make it an ideal choice for reliable, high-performance temperature monitoring in diverse industrial environments.
Get OMEGA TXDIN70 today—built for precision and long-lasting durability with configurable dual-channel temperature measurement and isolated outputs.
Frequently Asked Questions
Where can I buy OMEGA TXDIN7024V?
You can click on the BUY or RFQ button to purchase TXDIN7024V from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part TXDIN7024V?
You can download the TXDIN7024V datasheet or visit the OMEGA website for support.
Who is the manufacturer of TXDIN7024V?
OMEGA
