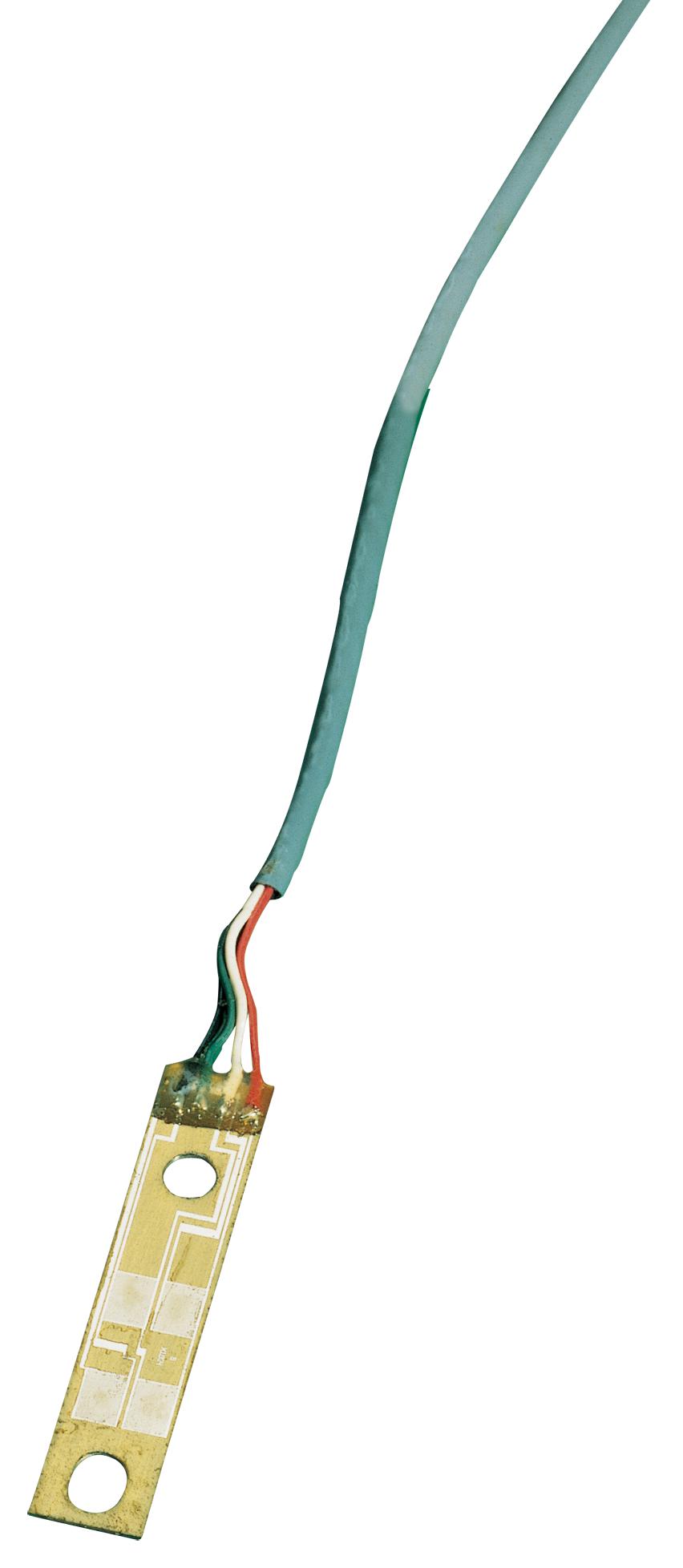

OMEGA LCL227G Load Cell
The LCL-227G from Omega is a full-bridge, thin-beam load cell designed for high-precision measurements of small loads. It features a thermally matched, fully active, full-bridge strain gauge that provides excellent temperature compensation and stability. Suitable for medical instrumentation, home appliances, process control, robotics, and automotive testing, it can measure up to 227 kgf (500 lb) with a rated output of 2 mV/V ±20%. Operating temperature ranges from -54°C to 93°C (-65°F to 200°F), with a urethane-coated seal, 150% overload capacity, and shielded PVC lead wires ensuring reliable performance in demanding environments.
OMEGA LCL227G Load Cell Specifications:
- Rated Load: 227 kgf (500 lb)
- Rated Output: 2 mV/V ±20%
- Zero Balance: 0.3 mV/V
- Combined Error: 0.25% FS
- Operating Temperature: -54 to 93°C
- Compensated Temperature: -7 to 49°C
- Resistance (Input and Output): 1200 +300 QO
- Insulation Resistance: 1000 @ 50 Vdc
- Seal: Urethane coated
- Safe Overload: 150% FS
- Full Scale Deflection: 0.25 to 1.27 mm
- Lead Wire: 9" shielded PVC 4-conductor 30 AWG
- Material: >816 gf (2 Ib): 301 SS; <816 gf (2 Ib): Beryllium copper
Buy the Omega Series LCL Load Cells: LCL-227G
Purchase the Omega LCL-227G load cell online today to ensure accurate force measurements in medical, industrial, or automotive applications. Designed for high stability, excellent temperature compensation, and reliable operation, this thin-beam full-bridge sensor measures loads up to 227 kgf with a rated output of 2 mV/V ±20%. Its rugged urethane seal and shielded PVC lead ensure durability and consistent performance in demanding environments. Ideal for sensor integrations requiring precision, the LCL-227G combines advanced strain gauge technology with easy installation, making it a perfect choice for high-accuracy force sensing needs.
Get Omega LCL-227G today—built for precision and long-lasting durability in small load measurement applications.
