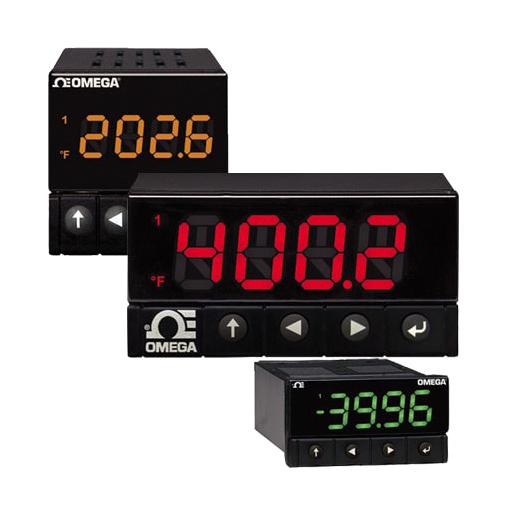

OMEGA DP8EPT330006C24DC Digital Panel Meter
The DP8EPT330006C24DC is a reliable digital panel meter designed for process measurement in industrial applications. It features a bright 4-digit, 9-segment LED display with customizable colors and multiple input options including thermocouples, RTDs, thermistors, voltage, current, and strain. Its versatility is enhanced with firmware-automatic configuration, up to 20 samples per second, and built-in Ethernet and serial communications supporting TCP/IP, MODBUS, RS232, and RS485 interfaces. Compact and easy to install, it ensures high accuracy and robust performance in demanding environments.
OMEGA DP8EPT330006C24DC Digital Panel Meter Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Current Input: 4 to 20 mA, 0 to 24 mA scalable
- Voltage Input: -100 to 100 mV, -1 to 1V, -10 to 10 Vde scalable
- Thermocouple Input (ITS 90): K, J, T, E, R, S, B, C, N
- RTD Input (ITS 90): 100/500/1000 2 Pt sensor, 2-, 3- or 4-wire; 0.00385, 0.00392, 0.003916 curves
- Thermistor Input: 2252 Q, 5K Q, 10K Q
- Input Impedances: Process/Strain 10MΩ, Voltage 1MΩ, Process Current 5Ω
- Resolution: 0.1°C for temperature, 10 LV for process
- Sampling Rate: 20 samples/sec with 24-bit sigma delta ADC
- Display: 4-digit, 9 segment LED with optional color change
- Communications: USB via micro-USB, Ethernet RJ45, Serial RS232/RS485, MODBUS support
- Power Supply: 90-240 Vac (AC) or 12-36 Vdc (Low Voltage)
- Dimensions: 48 H x 96 W x 127 mm D for DP8Pt, 48 H x 48 W x 127 mm D for DP16Pt, 25.4 H x 48 W x 127 mm D for DP32Pt
- Panel Cutout: 45 x 92 mm for DP8Pt, 45 mm square for DP16Pt, 22.5 x 45 mm for DP32Pt
- Environmental Conditions: 0-50°C, 90% RH non-condensing
- Approvals: UL, cUL, CE
Buy the Omega DP8EPT330006C24DC – Reliable Temperature and Process Measurement for Industrial Applications
Enhance your industrial process control with the Omega Digital Panel Meter DP8EPT330006C24DC. Featuring versatile inputs, a bright LED display, and multiple communication options including Ethernet and serial, it is perfect for precise temperature and process measurement. Its automatic firmware configuration makes setup straightforward, saving time and reducing errors. Compact and robust, this meter operates reliably in harsh environments, offering high accuracy and fast sampling rates. Buy online now for dependable performance in your engineering solutions and industrial automation projects.
Order your Omega Series DP8EPT330006C24DC today and get a versatile, high-accuracy digital panel meter perfect for demanding industrial projects.
Frequently Asked Questions
Where can I buy OMEGA DP8EPT330006C24DC?
You can click on the BUY or RFQ button to purchase DP8EPT330006C24DC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP8EPT330006C24DC?
You can download the DP8EPT330006C24DC datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP8EPT330006C24DC?
OMEGA
