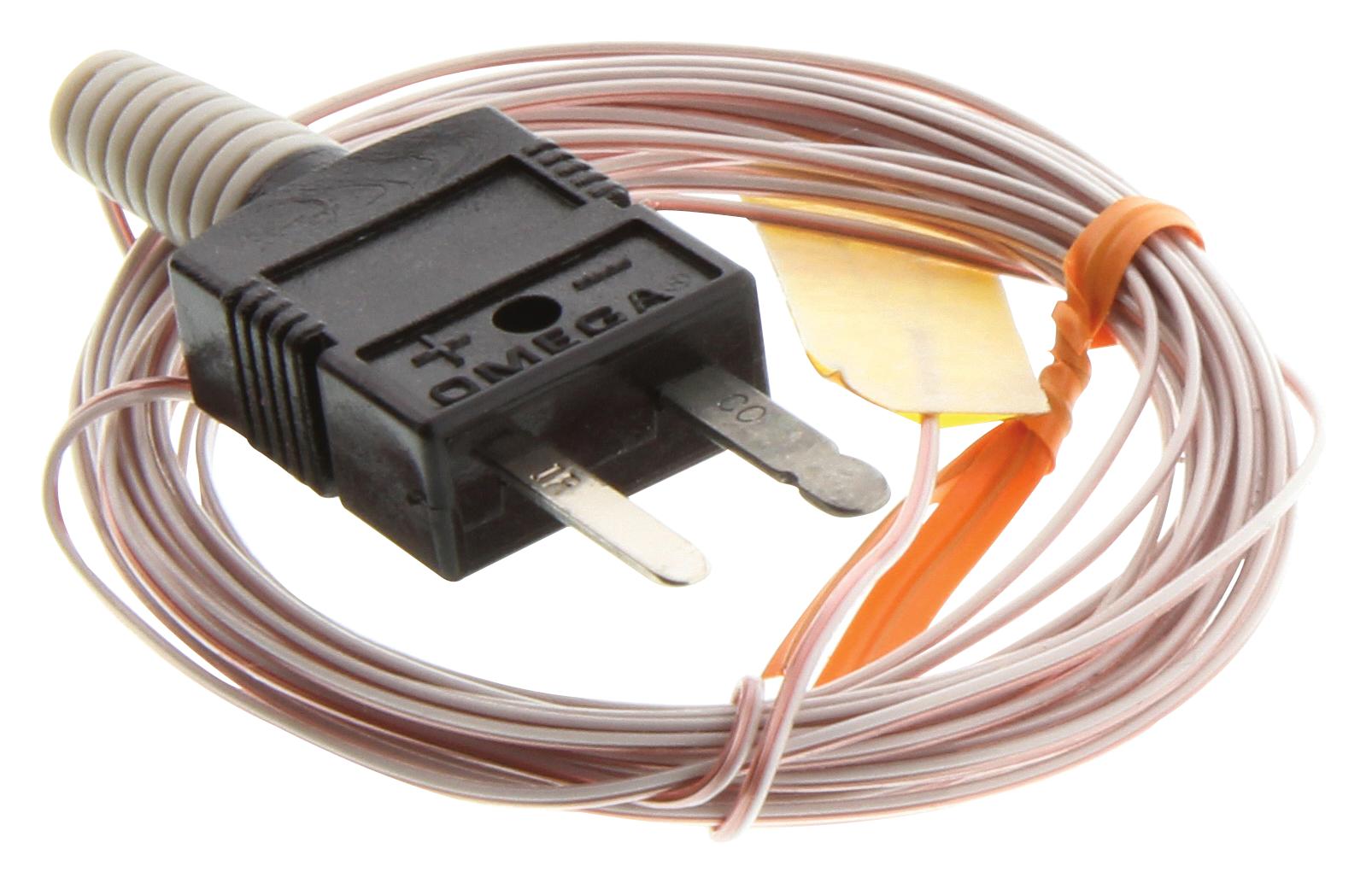

OMEGA SA3J120SRTC Surface Thermocouple
The SA3 Series fast response surface thermocouples feature a polyimide carrier with self-adhesive backing, designed for rapid temperature measurement in various environments. Available in Type J, K, T, and E thermocouples with ANSI or IEC color codes, these thermocouples offer excellent chemical and oil resistance, making them suitable for outdoor and wet conditions, including sunlight. They have a low-mass junction for fast response, with options including stripped leads or miniature color-coded connectors. Temperature ranges from -40 to 260°C, ensuring accurate readings across diverse applications.
OMEGA SA3J120SRTC Surface Thermocouple Specifications:
- Thermocouple types: J, K, T, E with ANSI or IEC color codes
- Temperature Range: Sensor -17 to 260°C (0 to 500°F), Connector -29 to 180°C (-20 to 356°F)
- Accuracy: Special limits of error
- Construction: Ungrounded sensor with polyimide tape base, silicone adhesive, glass-filled nylon connector
- Insulation Resistance: Minimum 100 MQ at 100 Vdc at room temperature
- Cable: PFA insulated 30 AWG with a low-mass junction for fast response
- Options: Stripped #30AWG leads or molded miniature connector, lengths of 1m, 2m, or 3m
- Design: Flexible, thin mounting pad suitable for outdoor and wet environment use
- Chemical and oil resistance, UV stable, minimal influence from sunlight
- Dimensions: Length options – 1m, 2m, 3m; diameter approximately 0.50 mm
Buy the Self-Adhesive Series Thermocouples: SA3J120SRTC
Upgrade your temperature measurement with our reliable Self-Adhesive Surface Thermocouples. Designed for quick installation and precise readings, these thermocouples withstand outdoor and wet conditions, including sunlight. They are available in multiple thermocouple types and lengths, featuring chemical and oil resistance. The low-mass junction provides rapid response times, ideal for industrial, outdoor, and laboratory applications. Easy to connect with stripped leads or miniature connectors, offering versatile options for various temperature monitoring needs. Order online today for accuracy and durability you can trust.
Buy Self-Adhesive Series Thermocouples SA3J120SRTC now and experience fast, accurate temperature measurement in challenging environments with chemical resistance.
Frequently Asked Questions
Where can I buy OMEGA SA3J120SRTC?
You can click on the BUY or RFQ button to purchase SA3J120SRTC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SA3J120SRTC?
You can download the SA3J120SRTC datasheet or visit the OMEGA website for support.
Who is the manufacturer of SA3J120SRTC?
OMEGA
