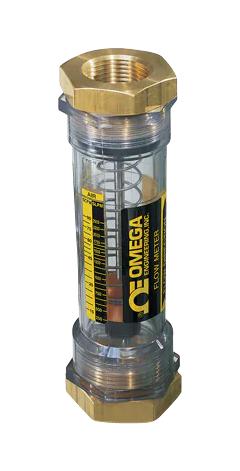

OMEGA FL515 Inline Flowmeter
The FL-515 series inline flowmeter offers precise measurement of water and air flows through PVC flow tube and float, with easy installation and maintenance. Suitable for pressures up to 200 psig for liquids and 100 psig for gases, it features a 66°C (150°F) temperature rating, brass end fittings, and FKM seals. The flow scales are visible for quick reading, and the device can be mounted in any position. It provides flow rates from 6 to 55 GPM and 15 to 135 SCFM, ideal for industrial water and air monitoring applications.
OMEGA FL515 Inline Flowmeter Specifications:
- Flow Service: Water and air with maximum pressures of 200 psig for liquids and 100 psig for gases
- Temperature Rating: 66°C (150°F) @ 25 psig
- Flow Tube and Float Material: PVC
- End Fittings: Brass, Female NPT
- Seals: FKM
- Dimensions: 177.8 mm (7 inches) long
- Flow Ranges: 4 to 38 GPM (liquid), 15 to 90 SCFM (air)
- Pressure Drop: 4 psig FS
- Accuracy: ±5% of full scale
- Scale: Fluid always in view, metric and imperial units
- Mounting: Any position
- Optional Features: NIST traceable water calibration, polysulfone options, electric proximity switches
Buy the Innovative Series FL-515 Flowmeter: FL-515
Enhance your fluid measurement capabilities with the robust and easy-to-maintain inline flowmeter. Designed for water and air, it offers accurate flow readings with clear scales, flexible mounting options, and durable construction. The FL-515 model features brass end fittings, PVC flow tubes, and precision calibration standards. Its adjustable settings and optional accessories like NIST calibration and proximity switches make it ideal for diverse industrial applications. Purchase online today for dependable and precise flow measurement that boosts operational efficiency.
Order your InnoveFlow Series FL-515 flowmeter today and ensure reliable water and air flow measurement for your industrial processes.
