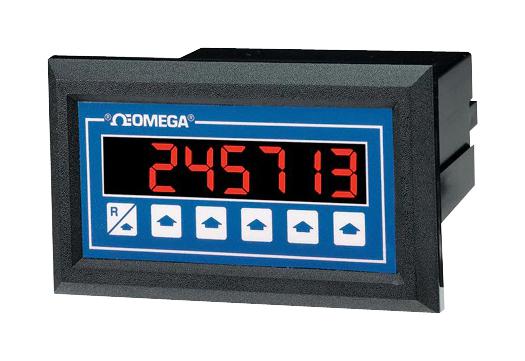

OMEGA DPF75 Ratemeter and Batch Controller
The DPF75 is a versatile ratemeter and batch controller with two 5A SPST relays for rate alarms or batching, featuring front-panel programming, scaling, and display of rate and total. It supports remote and front-panel reset, with a durable NEMA 4X (IP66) rated front panel for harsh environments. The device accepts multiple inputs, provides configurable scaling options, and includes adjustable analog outputs. Its compact design and multiple communication options make it suitable for precise process measurement and control applications across industries.
OMEGA DPF75 Ratemeter and Batch Controller Specifications:
- Input Power: 110 Vac +15%, 220 Vac +15%, 6.5 VA at rated AC voltage
- Output Power (AC units): 50 mA at 28 Vde for rate or total relays
- Programming: Front-panel and remote options with scaling and configuration
- Display: 6-digit totalizer and 5-digit ratemeter, units per second, minute, or hour
- Relays: Two 5A SPST relays for alarms or batching, with latch or auto-recycle modes
- Input Signals: Scaling and measurement for pulse, frequency, level, and other inputs
- Environmental: Operating temperature 0 to 54°C (32 to 129°F), storage -40 to 93°C (-40 to 199°F)
- Memory: EEPROM with 10-year data retention, even during power loss
- Certifications: NEMA 4X (IP66) rated front panel for durability in harsh conditions
- Communication Options: Optional RS232 and RS422 interfaces for data exchange
- Accessories Included: Operator’s manual, optional amplifier for sensor inputs
Buy the Omega Series DPF75 Ratemeter and Batch Controller: DPF75
Purchase your Omega Series DPF75 ratemeter and batch controller online today to ensure precise measurement and batching in your industrial processes. Its two adjustable relays, versatile scaling options, robust NEMA 4X rated enclosure, and multiple communication interfaces give you the flexibility and durability needed for demanding environments. Easy front-panel programming and remote reset provide operational convenience. Compatible with various signals, it helps optimize your process control and improve efficiency, making it an essential choice for reliable industrial measurement solutions.
Order your Omega Series DPF75 ratemeter and batch controller with relays today and enhance your process measurement accuracy and reliability in demanding environments.
