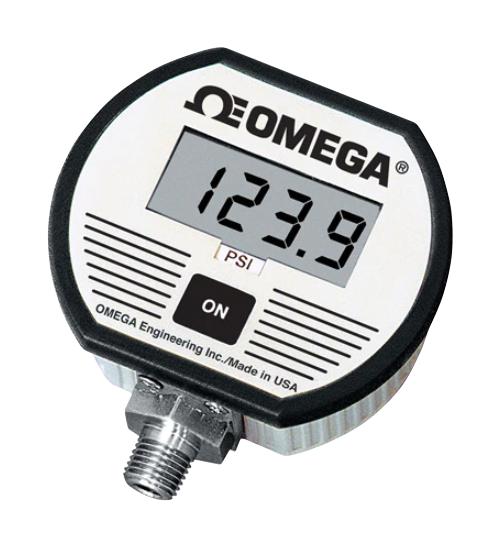

OMEGA DPG1000B500G Digital Pressure Gauge
The DPG1000B Series is a versatile, industrial digital pressure gauge with 0.25% accuracy, featuring a rugged aluminum case, 13 mm LCD display, and compatibility with liquids and gases. It operates on standard AA batteries for approximately 2500 hours with auto shut-off, making it ideal for portable and fixed applications. With pressure ranges up to 5000 psi, it includes low-battery indication. The device is suitable for gauge and absolute pressure measurement, featuring easy zero/span controls and optional rubber boot for durability.
OMEGA DPG1000B500G Digital Pressure Gauge Specifications:
- Power: 2 AA batteries, approximately 2500 hours, auto shut-off 5 min, low-battery indication
- Pressure Range: 0 to 5000 psi, vacuum to high-pressure options available
- Display: LCD, 13 mm (0.5 inch) digit height, 3 readings/sec
- Accuracy: +0.25% FSO, linearity, hysteresis, repeatability included
- Operating Temperature: -20 to 85°C (-4 to 185°F)
- Storage Temperature: -55 to 95°C (-67 to 203°F)
- Case: Rugged extruded aluminum, epoxy coated, optional NEMA 4X polycarbonate with gasket
- Pressure Connection: 316 SS, 1/8 inch NPT, wetted parts 316 SS
- Overpressure: 2x rated pressure
- Burst Pressure: 4x rated pressure
- Dimensions: Approximate 86 mm x 73 mm x 42 mm (3.38 in x 2.88 in x 1.65 in)
Buy the Industrial Series Pressure Gauge: DPG1000B-500G
Purchase the DPG1000B-500G digital pressure gauge online today for accurate and reliable pressure measurement. Featuring a rugged aluminum case and LCD display, this gauge offers up to 5000 psi range with precise 0.25% accuracy. Powered by long-lasting AA batteries with auto shut-off, it is ideal for industrial applications requiring gauge or absolute pressure readings. Easy zero/span controls, low-battery alerts, and optional protective boot make this device suitable for portable and fixed setups, ensuring durability and dependable performance wherever it’s used.
Order your Industrial Series DPG1000B-500G digital pressure gauge today and ensure precise, reliable pressure measurement in your industrial projects.
Frequently Asked Questions
Where can I buy OMEGA DPG1000B500G?
You can click on the BUY or RFQ button to purchase DPG1000B500G from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG1000B500G?
You can download the DPG1000B500G datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG1000B500G?
OMEGA
