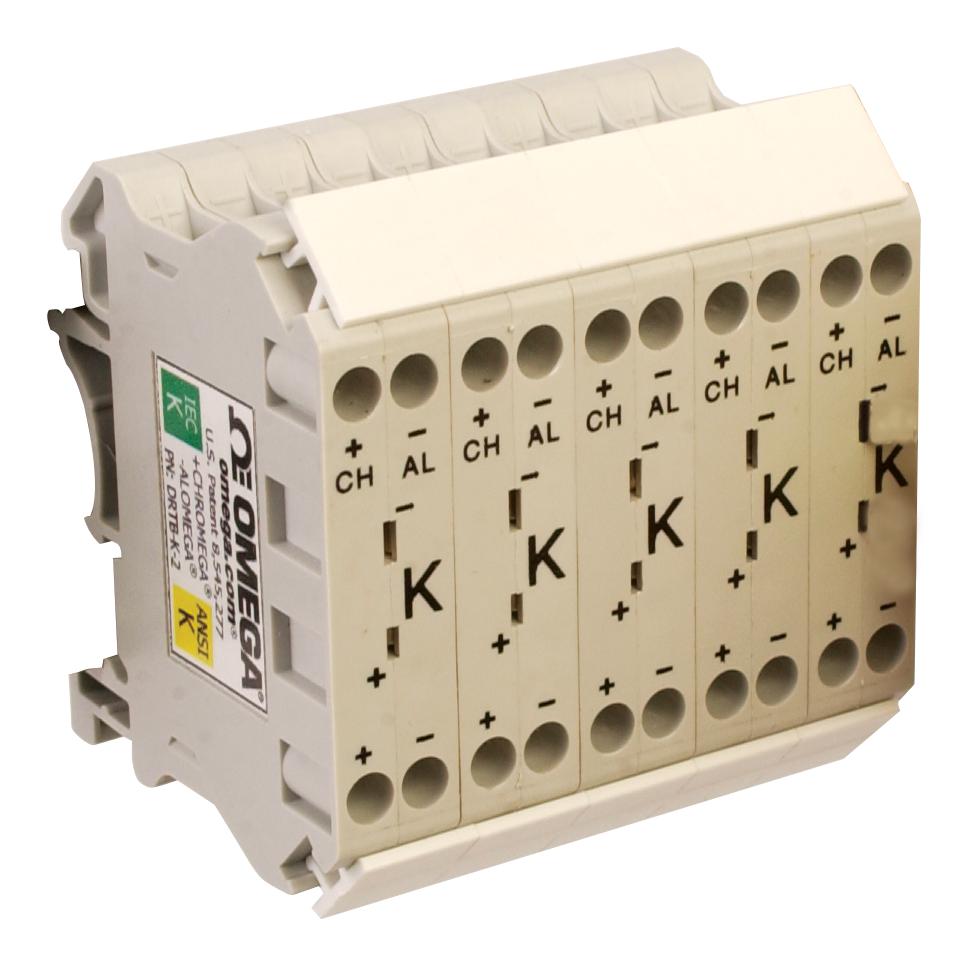

OMEGA DRTBK210PK Thermocouple Terminal Block
The DRTB-2 Series thermocouple terminal blocks are designed for precise temperature measurement in industrial automation. Featuring industry-standard screw terminals for secure, maintenance-free connections and a built-in miniature female thermocouple connector, they facilitate easy attachment to handheld meters for data collection and troubleshooting. Made from UL 94 VO-rated polyamide 6.6 thermoplastic resin, these fully enclosed, vibration-resistant blocks require no end plates. Compatible with 35 mm DIN rails, they support wire gauges from 14 to 24 solid or stranded wires, and operate from -40°C to 85°C, ensuring reliable performance in diverse environments.
OMEGA DRTBK210PK Thermocouple Terminal Block Specifications:
- Material: UL 94 VO-rated polyamide 6.6 thermoplastic resin
- Mounting: DIN rail, 35 mm width, compatible with G-type rails
- Width: 10.7 mm (0.422")
- Dimensions: 52.8 mm (H) x 10.7 mm (W) x 42.3 mm (L)
- Wire Range: 14-24 solid or stranded wire gauge
- Wire Strip Length: 8 mm (0.31")
- Temperature Rating: -40°C to 85°C (-40°F to 185°F)
- Housing: Fully enclosed, no end plates required
- Connections: Screw terminals with positive (+) and negative (-) labels
- Built-in female thermocouple connector for easy troubleshooting
- Screws: Stainless steel, captive
- Wire Clamps: Tin plated brass
- Application: Accurate temperature measurement and data logging in industrial settings
Buy the Thermocouple Terminal Blocks Series DRTB-2: DRTBK210PK
Purchase the Thermocouple Terminal Block Series DRTB-2 online to ensure reliable, precise temperature connections for industrial automation. These compact, DIN rail-mountable blocks feature secure screw terminals and a built-in miniature thermocouple connector for troubleshooting and data collection. Made from UL 94 VO-rated thermoplastic, they resist vibration and corrosion, supporting wire gauges from 14 to 24. Easy to install, fully enclosed, and suitable for harsh environments, these terminal blocks are ideal for maintaining accurate temperature measurement accuracy in various industrial processes.
Get Thermocouple Terminal Blocks Series DRTB-2 today—built for precision, durability, and easy installation in industrial temperature measurement systems.
