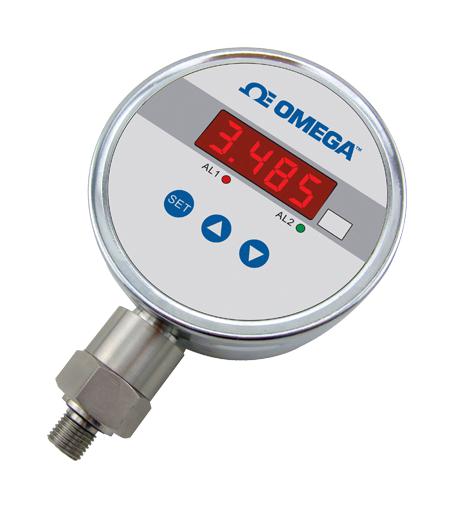

OMEGA DPG104005G Digital Pressure Gauge
The DPG104 digital pressure gauge provides accurate hydraulic fluid monitoring with a 4-digit LED display, 0.56-inch screen, and dual alarms. It features a 100mm dial, 220V relay output, and measures from -0.1 to 100 MPa with ±0.25% gauge accuracy. Suitable for industrial hydraulic systems, it operates in temperatures from -30°C to 80°C and fluid temperatures up to 150°C, with a quick <30ms response. Mounted via a 1/4 NPT stainless steel thread, it ensures reliable high-pressure readings in demanding environments.
OMEGA DPG104005G Digital Pressure Gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Accuracy: ±0.25% gauge, ±0.5% FS for other ranges
- Overload Pressure: 150% to 200%
- Display: 4-digit LED, 0.56 inch screen
- Power Supply: 13 to 30 VDC
- Temperature Range: -30°C to 80°C environmental, -40°C to 150°C fluid
- Thread Size: 1/4 NPT Male, Material: SS316
- Response Time: Less than 30ms
- Humidity: Up to 90%
- Output: 4-20mA (Model S), relay outputs with dual alarms
- Mounting: Direct on hydraulic pipeline, vertical installation recommended for ranges below 100 kPa
Buy the OMEGA Series Digital Pressure Gauge: DPG104005G
Purchase the OMEGA DPG104005G digital pressure gauge online today to ensure precise hydraulic fluid monitoring. This reliable device features a clear 4-digit LED display, quick response time, dual alarms, and robust stainless steel connections. Perfect for industrial applications requiring accurate pressure measurement, it operates across a wide temperature range and includes relay outputs for alarms. Easy to install directly on pipelines, it guarantees dependable performance in demanding environments. Order now for efficient hydraulic system management and enhanced operational safety.
Buy OMEGA DPG104005G now and experience unmatched reliability and high-precision hydraulic pressure measurement for industrial systems.
Frequently Asked Questions
Where can I buy OMEGA DPG104005G?
You can click on the BUY or RFQ button to purchase DPG104005G from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG104005G?
You can download the DPG104005G datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG104005G?
OMEGA
