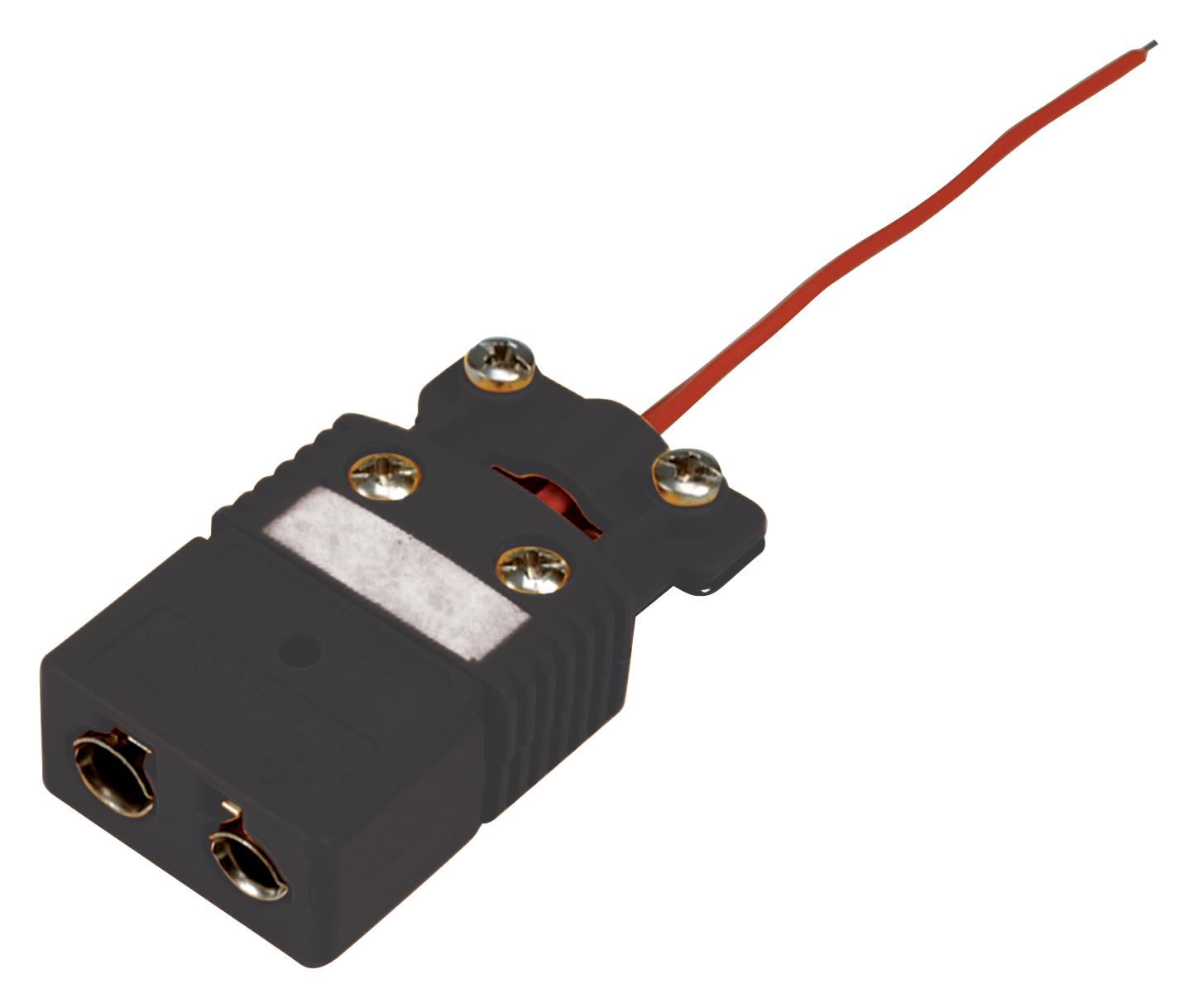

OMEGA OSTWCCJF Industrial Connector
The OSTWCCJF is an industrial connector featuring an integral cable clamp cap, strain relief with grommet, and a captive cover with clamp screws. It supports wire termination up to 14 AWG and accepts stranded, solid, TWSH, overbraid, or RSC coil cord wire. The connector includes a back plate, optional variants, contact washers for quick wire connections, internal wire divider, and a write-on window. Its glass-filled nylon body withstands temperatures from -29°C to 180°C, ensuring durability in demanding environments, with high pull test ratings for secure connections.
OMEGA OSTWCCJF Industrial Connector Specifications:
- Material: Glass filled nylon
- Temperature Range: -29°C to 180°C (-20°F to 356°F)
- Back Plate: 4 inches supplied, optional 0.225 inches opens to 5.7 mm, 0.925 inches opens to 8.2 mm
- Wire Termination: Up to 14 AWG, supports stranded, solid, TWSH, overbraid, RSC coil cord wire
- Cable Clamp Range: Opens to 5.7 mm with supplied back plate, 8.2 mm with optional back plate
- Screws: Combination Phillips/Slot head, captive
- Dimensions: Length approximately 45.64 mm (1.80 inches), width detailed in figures, diameter varies
- Features: Integral cable clamp cap, strain relief with grommet, internal wire divider, write-on window
- Color Options: Various alloy-coded versions, including chrome, copper, iron, and others
- Connector Type: Female with hollow or solid pin options, quick connection washers for ease of wiring
Buy the Ultimate Connector OSTWCCJF – Reliable Cable Clamp for Industrial Applications
Purchase the industrial connector with integral cable clamp and strain relief online today. Designed for secure wire termination up to 14 AWG, it features quick-connect washers, captive screws, and a durable nylon body rated from -29°C to 180°C. The connector supports various wire types including stranded, solid, and overbraid, providing reliable electrical connections in demanding industrial settings. Its robust construction, multiple alloy options, and easy assembly make it a preferred choice for professional wiring and automation systems. Order now for fast delivery and expert support.
Get Ultimate Connector OSTWCCJF today—built for precise wire termination, excellent strain relief, and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy OMEGA OSTWCCJF?
You can click on the BUY or RFQ button to purchase OSTWCCJF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OSTWCCJF?
You can download the OSTWCCJF datasheet or visit the OMEGA website for support.
Who is the manufacturer of OSTWCCJF?
OMEGA
