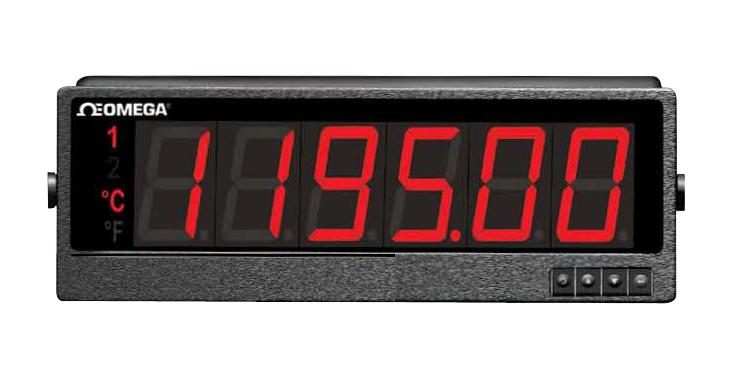

OMEGA ILD44UTPC4EI Large Digital Display
The iLD Series displays are large, bright LED digital meters designed for industrial process monitoring and control. Available in 57 mm (2.25-inch) and 101 mm (4-inch) sizes, these displays support various input types including temperature, process, strain gage, frequency, pulse, AC current, and voltage. They feature customizable color changes, alarm functions, network connectivity via Ethernet, RS232, RS485, and MODBUS protocols, and optional relay outputs. Mountable in panels or surface-mounted with included brackets, they are ideal for remote process monitoring, automation, and control applications with NEMA 4 (IP65) protection.
OMEGA ILD44UTPC4EI Large Digital Display Specifications:
- Display Sizes: 57 mm (2.25 inches), 101 mm (4 inches)
- Display Types: 4-digit or 6-digit LED with programmable colors (red, amber, green)
- Input Types: Thermocouple, RTD, analog voltage/current, strain gage, frequency, pulse, AC current, AC voltage
- Accuracy: Temperature ±0.5°C, Strain 0.03%, Frequency ±0.1 Hz, Pulse Resolution 1 count
- Connectivity: Ethernet, RS232, RS485, MODBUS, network options available
- Outputs: Two form C SPDT relays (3A @ 120/240 Vac), optional for control/alarm
- Mounting: Panel or surface-mount with included brackets, enclosure protection NEMA 4/IP65
- Power Supply: 100-240 Vac ±10%, 50/60 Hz
- Environmental: Operating from 0°C to 40°C, relative humidity 90% non-condensing
- Standards: CEOMEGA approved, compliant with industrial safety and communication standards
Buy the Omega ILD Series – Reliable Large Display for Industrial Applications
Upgrade your industrial monitoring with the Omega ILD44UTPC4EI large LED display. Featuring bright 4-inch high-visibility digits, multi-input options including thermocouple, RTD, and analog signals, plus customizable color changes and network connectivity via Ethernet, RS232, RS485, and MODBUS. Mountable in panels or on surfaces with included brackets, it offers robust protection with NEMA 4/IP65 ratings. Ideal for remote data display, process control, and automation, providing reliable, easy-to-read measurement output for demanding industrial environments.
Order your Omega ILD44UTPC4EI large display today and enhance your process monitoring with high visibility and reliable network connectivity.
Frequently Asked Questions
Where can I buy OMEGA ILD44UTPC4EI?
You can click on the BUY or RFQ button to purchase ILD44UTPC4EI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part ILD44UTPC4EI?
You can download the ILD44UTPC4EI datasheet or visit the OMEGA website for support.
Who is the manufacturer of ILD44UTPC4EI?
OMEGA
