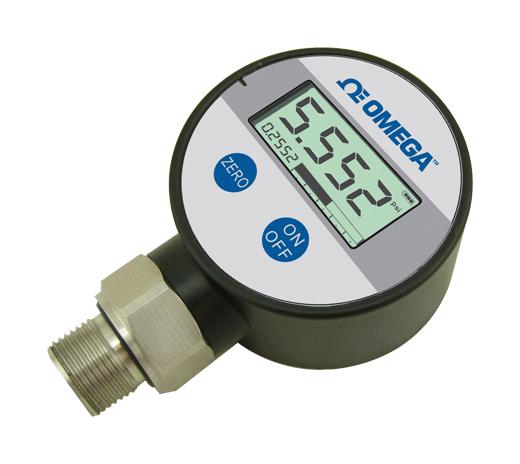

OMEGA DPG10850KG Digital Pressure Gauge
The DPG108 is a battery-powered digital pressure gauge designed for on-site measurements with high precision. It features a piezo-resistive sensor, amplified output, and high-accuracy A/D conversion displayed on a backlit LCD. Suitable for liquids and gases compatible with stainless steel, it offers measurement ranges from -0.1 to 100 MPa, with multiple engineering units, overload protection up to 200%, and multiple user-configurable auto-shutoff and backlight features. Its rugged IP65/IP68 housing ensures durability in demanding industrial environments, making it ideal for water, petroleum, chemical, hydraulic, and other industries requiring reliable pressure monitoring.
OMEGA DPG10850KG Digital Pressure Gauge Specifications:
- Measuring Range: -0.1-0-100 MPa
- Engineering Units: psi, bar, kPa, MPa, kg / cm²
- Overload Pressure: 150%~200%
- Pressure Type: G/AID
- Stability: <0.1% FS per year
- Power Supply: 9V battery
- Display: 4 Digits, backlit LCD
- Accuracy Range: 20.25% for gauge pressure, 40.5% FS for others
- IP Rating: IP65 / IP68 with Silicone case
- Sampling Rate: 4 times/sec
- Operating Temp: -20°C to +70°C
- Relative Humidity: 95%
- Thread Size: V4 NPT
- Thread Material: stainless steel
- Dimensions: Compact handheld size
Buy the Buy Omega DPG10850KG Part Number DPG10850KG Online
Purchase the Omega DPG10850KG digital pressure gauge online for precise pressure measurements in diverse industrial settings. Its high-accuracy piezo-resistive sensor, robust IP65/IP68 casing, and versatile measurement range from -0.1 to 100 MPa ensure dependable performance for water, chemical, hydraulic, and petroleum industries. Featuring multiple engineering units, auto-shutoff, backlit LCD, and long battery life over 2,000 hours, this gauge offers effortless operation, reliable data, and durability. Ideal for professionals seeking accurate pressure monitoring and easy on-site installation.
Order your Omega DPG10850KG digital pressure gauge today and enjoy accurate, reliable measurements for industrial applications with excellent durability.
Frequently Asked Questions
Where can I buy OMEGA DPG10850KG?
You can click on the BUY or RFQ button to purchase DPG10850KG from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG10850KG?
You can download the DPG10850KG datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG10850KG?
OMEGA
