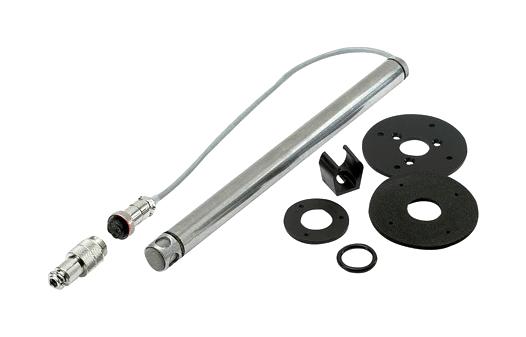

OMEGA HX94V Humidity Temperature Transmitter
The HX94 series relative humidity and temperature transmitters feature stainless steel NEMA 4 housing, versatile mounting options, and removable filters for easy cleaning. They provide reliable duct mount monitoring with solid-state sensors for fast response, stability, and high sensitivity. Available with 4 to 20 mA or 0 to 1 Vdc outputs, these transmitters operate from 6 to 30 Vdc, measuring humidity from 0 to 100% RH and temperature from -20°C to 85°C. Connected via 4-pin connectors or NPT fittings, they come with mounting brackets and calibration options for precise environmental monitoring in industrial applications.
OMEGA HX94V Humidity Temperature Transmitter Specifications:
- Housing: Stainless steel NEMA 4 enclosure
- Sensor: Removable stainless steel filter
- Dimensions: 254 x 19 mm (10 x 0.75") probe, 305 mm cable
- Output Options: 4-20 mA or 0-1 Vdc
- Voltage Range: 6-30 Vdc, polarity protected
- Humidity Range: 0-100% RH
- Temperature Range: -20°C to 85°C
- Response Time: Less than 20 seconds for 10-90% RH, less than 30 seconds for 90-10% RH
- Installation: Wall or duct mounting, removable flange
- Connections: 4 pin connector, 1 m lead wires, NPT fitting options
- Weight: 198 g (7 oz.) with duct flange
- Calibration: NIST-traceable options available
Buy the Buy IndustryPro Humidity and Temperature Transmitter Part Number HX94V Online
Order the IndustryPro humidity and temperature transmitter online today for accurate duct monitoring in industrial environments. Featuring stainless steel housing, versatile mounting options, and removable filters, this device provides fast response and stable readings. Choose between 4-20 mA or 0-1 Vdc outputs with a wide operating voltage range of 6 to 30 Vdc. Easy to install with NPT fittings or wall brackets, it ensures optimal environmental control with NIST calibration options and easy maintenance. Get yours now for reliable, continuous monitoring.
Buy IndustryPro HX94V now and ensure precise environmental monitoring with reliable fast-response humidity and temperature measurement.
Frequently Asked Questions
Where can I buy OMEGA HX94V?
You can click on the BUY or RFQ button to purchase HX94V from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HX94V?
You can download the HX94V datasheet or visit the OMEGA website for support.
Who is the manufacturer of HX94V?
OMEGA
