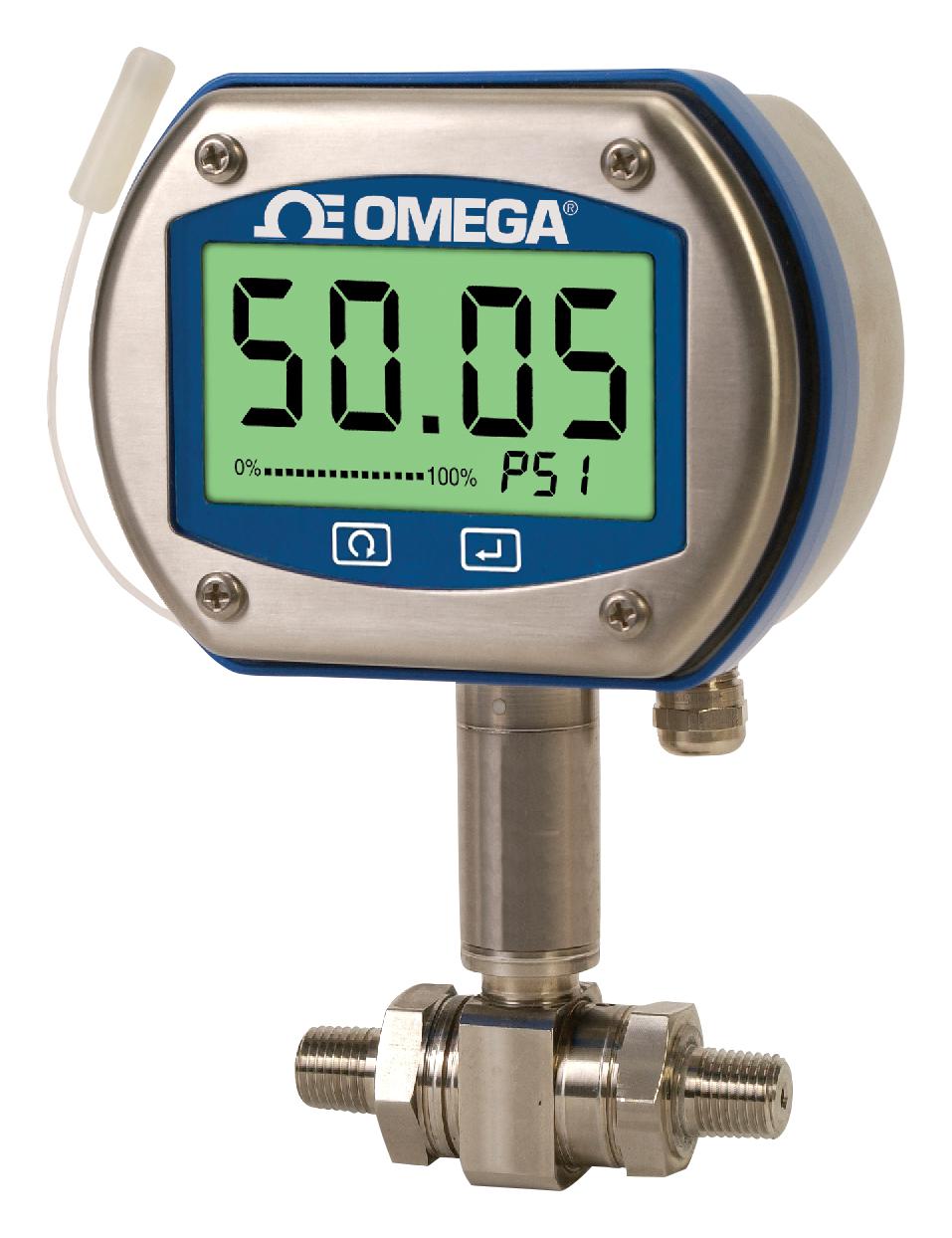

OMEGA DPG409015DWU Differential Pressure Gauge
The DPG409 digital differential pressure gauge offers high accuracy and durability with a rugged 316 stainless steel enclosure designed for washdown and marine environments. It features a precision 0.08% sensor, multiple pressure ranges from 0-10 inH2O to 0-1000 psi, and user-selectable analog outputs including 0-5 Vdc, 0-10 Vdc, or 4-20 mA. Equipped with a backlit LCD, wireless transmitter option, and NEMA 4X rating, it ensures reliable, long-term measurement with easy setup and calibration suitable for industrial and harsh environments.
OMEGA DPG409015DWU Differential Pressure Gauge Specifications:
- Measurement Range: 0-10 inH2O to 0-1000 psi
- Accuracy: 0.08% combined linearity, hysteresis, and repeatability
- Enclosure: 316 stainless steel, NEMA 4X (IP65)
- Display: 25 mm (1 inch) backlit LCD, 4-digit, user selectable brightness
- Analog Output: 0-5 Vdc, 0-10 Vdc, or 4-20 mA, externally powered (24 Vdc required)
- Sensor Wetted Parts: 316L stainless steel
- Power: One 3.6V lithium battery (up to 9 months, wireless version possibly longer)
- Pressure Connection: 4-18 NPT male
- Dimensions: Display 115 x 89 x 74 mm; Sensor length 72-89 mm; Weight: 1 kg
- Operating Temperature: -18°C to 66°C (-0°F to 150°F)
- Storage Temperature: -40°C to 82°C (-40°F to 180°F)
- Pressure Cycles: Minimum 1 million
- Long Term Stability: ±0.1% FS per year
- Calibration: 5-point NIST traceable included
- Certifications: CE Compliant EN61326-1: 2006
- Additional Features: Min/Max/Avg readings, alarms, remote data logging, wireless transmit option, USB interface for setup
Buy the Omega Series DPG409 Differential Pressure: DPG409015DWU
Order the Omega DPG409015DWU digital differential pressure gauge online today and enhance your measurement accuracy with rugged stainless steel housing, high precision sensor, multiple pressure ranges, backlit LCD display, and flexible analog outputs. Featuring a user-friendly USB setup, calibration, and optional wireless transmission, this device is suited for harsh industrial and marine environments. Invest in reliable pressure measurement technology that ensures long-term stability and easy operation, tailored to meet demanding process control needs.
Buy Omega DPG409015DWU now and experience unmatched reliability, high accuracy, and durable stainless steel construction for demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA DPG409015DWU?
You can click on the BUY or RFQ button to purchase DPG409015DWU from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG409015DWU?
You can download the DPG409015DWU datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG409015DWU?
OMEGA
