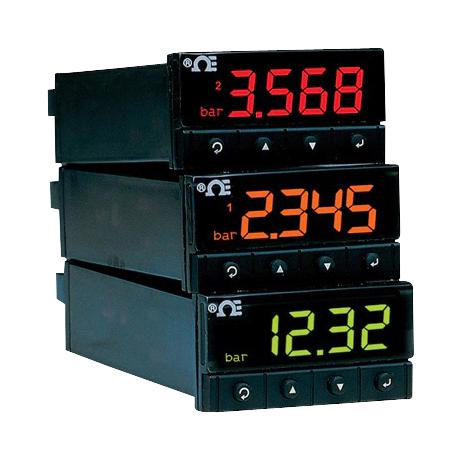

OMEGA DPIS32DC digital process meter
The DPIS32DC is a high-accuracy, microprocessor-based digital panel meter designed for temperature, process, and strain measurements. It supports a wide range of thermocouples, RTDs, voltage, and current inputs with built-in excitation and flexible communication options including Ethernet and serial protocols. Featuring a color programmable display, NEMA 4/IP65 front bezel, and adjustable digital filter, it offers excellent stability, linearization, and user-friendly configuration. Ideal for industrial automation, process control, and strain gauge monitoring in demanding environments, ensuring precise readings with advanced connectivity and customization options.
OMEGA DPIS32DC digital process meter Specifications:
- Display: 4-digit 9-segment LED with programmable color (green, amber, red)
- Inputs: Thermocouple types J, K, T, E, R, S, B, C, N, L; RTD's 100/500/1000Ω, 2-, 3-, or 4-wire; Voltage: 0-10 V, 0-100 mV, 0-1 V; Current: 0-20 mA
- Accuracy: ±0.5°C for temperature; 0.03% rdg for process and strain inputs
- Temperature Stability: RTD 0.04°C/°C; Thermocouple 0.05°C/°C at 25°C
- Resolution: 1°C/0.1°C for temperature; 10μV for process
- Power Supply: 90-240 Vac, 50-400 Hz, options for 12-36 Vdc/VAC
- Communication: Ethernet (TCP/IP, HTTP, ARP), serial RS232/RS485/RS422 up to 19.2 Kb, configurable protocols
- Protection Rating: NEMA 4X (IP65) front bezel for models with a programmable color display
- Environmental Conditions: 0-55°C, 90% RH non-condensing
- Dimensions: i/8 Series 48 H x 96 W x 127 D mm, i/16 Series 48 H x 48 W x 127 D mm, i/32 Series 25.4 H x 48 W x 127 D mm
- Panel Cutouts: i/8 Series 45 H x 92 W mm, i/16 Series 45 mm square, i/32 Series 22.5 H x 45 W mm
- Certificates: UL, C-UL, CE (2014/35/EU); NEMA 4/IP65 front bezel for specific models
Buy the Omega DPIS32DC – Reliable Temperature and Process Meter for Industrial Applications
Enhance your industrial operations with the Omega DPIS32DC digital process meter. Offering high accuracy, versatile inputs, and programmable color display, it ensures precise temperature, process, and strain measurements. With Ethernet connectivity and multiple serial protocols, integrating into your automation system is seamless. Its rugged NEMA 4/IP65 rated front bezel withstands harsh environments, making it ideal for demanding industrial settings. Purchase online today and equip your facility with reliable, flexible, and easy-to-configure measurement solutions that improve efficiency and data accuracy.
Order your Omega Series DPIS32DC today and experience precise temperature, process, and strain monitoring with advanced connectivity and durable design.
