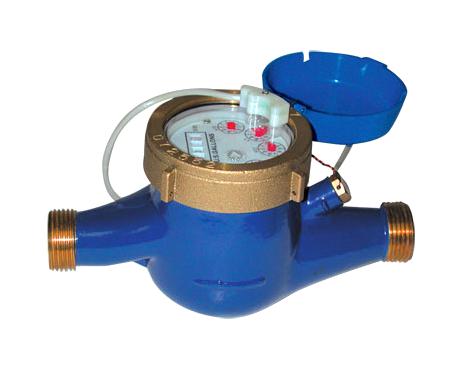

OMEGA FTB8007HWPT hot water meter
The FTB8000HW Series water meters are designed for totalization and rate indication in hot water systems, featuring a cast bronze body, engineered thermoplastic internals, and a ceramic magnet. They operate up to 90°C (194°F) and 150 psi maximum pressure, with an accuracy of 1.5%. Models include options with pulse output via Hall-effect or reed switch sensors, allowing for remote monitoring and data logging. Compact and reliable, these meters are ideal for accurate low-quality water measurement with easy service access through union end couplings.
OMEGA FTB8007HWPT hot water meter Specifications:
- Body Material: Cast bronze
- Internals: Engineered thermoplastic
- Magnet: Permanent ceramic
- Maximum Temperature: 90°C (194°F)
- Maximum Operating Pressure: 150 psi
- Accuracy: 1.5% of reading
- Sensor Types: Hall-effect (requires power), reed switch (no power)
- Sensor Max Current: 20 mA
- Sensor Max Voltage: 24 V
- Cable Length: 3.7 m (12') standard, 610 m (2000') max
- Flow Rates: 0.22 to 132 GPM depending on model
- NPT Size Options: 1/2, 1, 2 inch
- Pulse Rates: 1 pulse per gallon or 50 pulses per gallon (on models with -PT)
- Designed for hot water measurement with field-adjustable pulse output
Buy the Buy Hot Water Meter Part Number FTB8007HWPT Online
Purchase the reliable hot water meter suitable for accurate totalization with adjustable pulse output, cast bronze body, and high-temperature capacity. Ideal for plumbing and industrial applications, these meters ensure precise measurement of hot water flow from 0.22 to 132 GPM. With options for power-assisted Hall-effect sensors or reed switches, they provide flexible installation and remote data collection. Easy to service with union end couplings and standard cable length, these meters enhance water management efficiency and are perfect for professionals seeking durability and accuracy.
Get Hot Water Meter FTB8007HWPT today—built for precision, durability, and easy field-adjustable pulse output.
