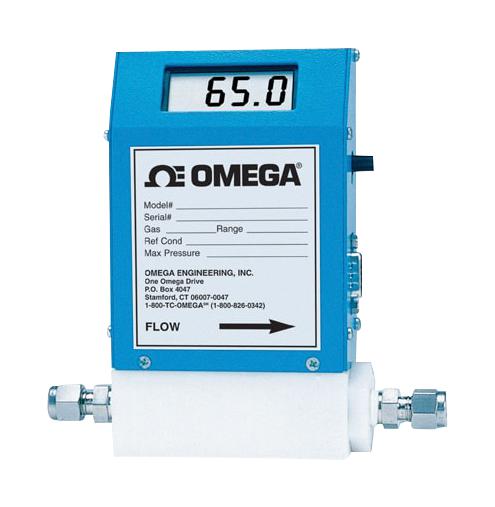

OMEGA FMAA2302 Mass Flowmeter
The FMA-A2302 is a polyacetal mass flowmeter from the FMA-2100 series, featuring a display for real-time measurement. It offers high performance, versatility, and advanced design within a compact form factor. The device measures flow rates from 0 to 50 SCCM with an accuracy of ±1% of full scale, including linearity. It provides a linear analog output and is compatible with most non-corrosive gases. Power options include 24V DC at 150mA or 115VAC/220VAC with an AC adaptor. Included accessories comprise the flowmeter with a 9-pin sub-D connector, a power supply, a 5-point NIST calibration certificate, and an operator's manual.
OMEGA FMAA2302 Mass Flowmeter Specifications:
- Accuracy: ±1% of full scale including linearity
- Repeatability: +0.15% full scale or better
- Turndown Ratio: 100:1
- Response Time: 5 seconds
- Flow Range: 0 to 50 SCCM
- Material: Polyacetal body
- Maximum Pressure: 250 psig
- Power Supply: 24 VDC @ 150 mA or 115/220 VAC with adaptor
- Output Signals: 0-5 Vdc and 4-20 mA
- Control Signal: 0-5 Vdc
- Connection: 9-pin sub-D connector
- Dimensions: Compact size, see drawing
- Mounting Threads: #4/6 self-tap screw
- Ambient Temperature: 0 to 50°C
- Leak Integrity: 1x10^-8 cc/min He
- Wetted Parts: Polyacetal with optional 316 SS and FKM O-rings
Buy the Omega FMAA2302 U+2013 Reliable Mass Flowmeter with Display for Industrial Applications
Purchase the Omega FMAA2302 mass flowmeter online today and enjoy precise, real-time measurements for non-corrosive gases. With a clear display, linear 0-5V and 4-20mA outputs, it offers reliable performance for laboratory and industrial applications. Featuring easy installation, versatile power options, and certified calibration, this compact device ensures accurate flow monitoring. Order now and enhance your gas management system with a device trusted for quality, durability, and precision in demanding environments.
Buy Omega FMAA2302 now and experience unmatched accuracy and real-time flow measurement for your gas flow control needs.
