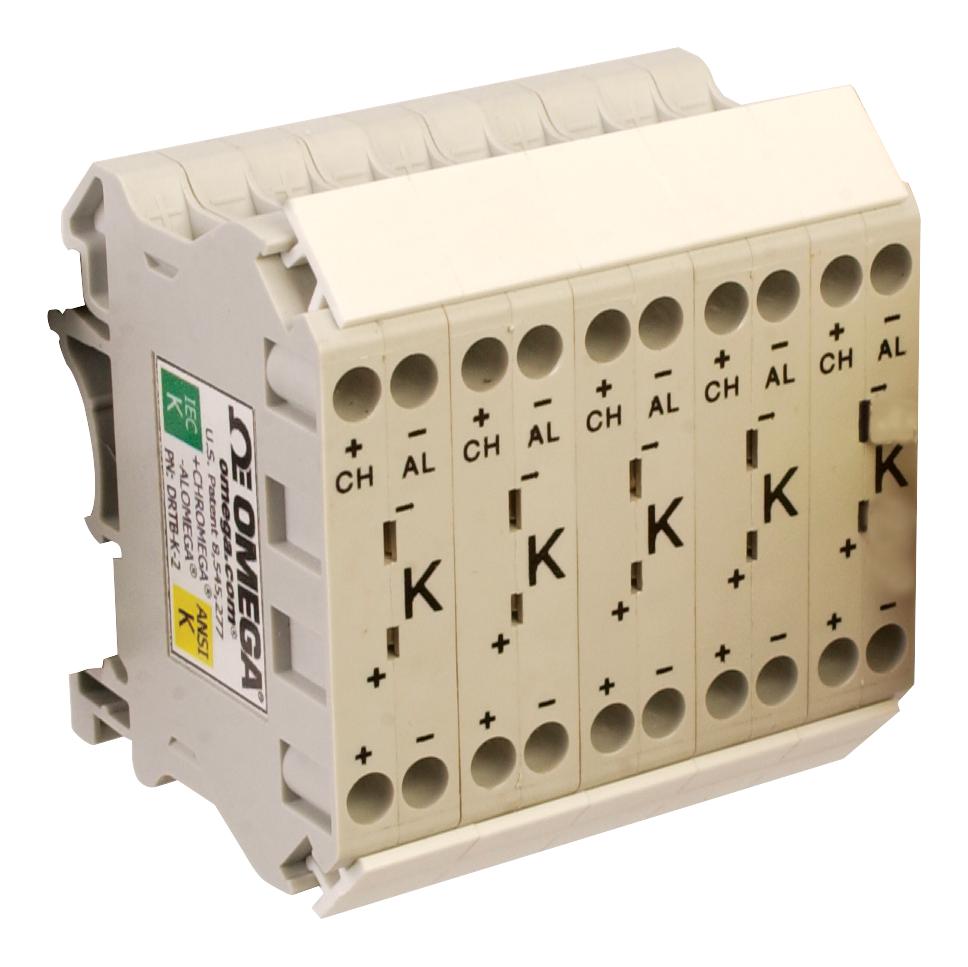

OMEGA DRTBU2 Thermocouple Terminal Block
The DRTB-2 Series thermocouple terminal blocks offer precise, vibration-resistant connections for industrial temperature measurement, featuring built-in miniature female thermocouple connectors for easy data collection and troubleshooting. Made from UL 94 VO-rated polyamide 6.6 thermoplastic, they are fully enclosed, require no end plates, and mount on standard DIN rails for space-efficient installation. These blocks support Type K, J, T, E, N, R/S, and U calibrations, with stainless steel screws and tin-plated brass clamps ensuring maintenance-free, corrosion-resistant reliability up to 85°C.
OMEGA DRTBU2 Thermocouple Terminal Block Specifications:
- Width: 10.7 mm (0.422")
- Dimensions: 52.8 mm (2.08") high, 42.3 mm (1.666") deep, installed height 43.5 mm (1.713") on 35 x 7.5 mm DIN rails
- Wire Range: 14-24 solid, 16-24 stranded wire
- Wire Strip Length: 8 mm (0.31')
- Temperature Rating: -40 to 85°C (-40 to 185°F)
- Housing Material: UL 94 VO-rated polyamide 6.6 thermoplastic
- Mounting: DIN rail compatible 35 mm and G-type 32 mm rails
- Connections: Female thermocouple connectors, calibration markings with ± connections
- Cable Compatibility: SMP standard miniature connectors, extension cables available
- Screws: Stainless steel, captive; clamps: Tin-plated brass
- Certifications: Recognized UL component, vibration and corrosion resistant, ideal for industrial environments
Buy the Thermo Temperature Series DRTB-2: DRTBU2
Enhance your temperature measurement system with the Thermocouple Terminal Block from the DRTB-2 Series, offering precise, vibration-resistant connections, built-in miniature thermocouple connectors for easy troubleshooting, and DIN rail compatibility. Made from UL 94 VO-rated thermoplastic, it provides maintenance-free operation with stainless steel screws and tin-plated brass clamps for corrosion resistance. Suitable for Type K, J, T, E, N, R/S, U calibrations, this robust terminal block ensures accurate readings in industrial environments, streamlining installation and ensuring long-term reliability.
Buy Thermo Temperature Series DRTBU2 now and experience unmatched reliability and performance in industrial thermocouple measurements.
