OMEGA FGH051020 Fiberglass Heating Tape

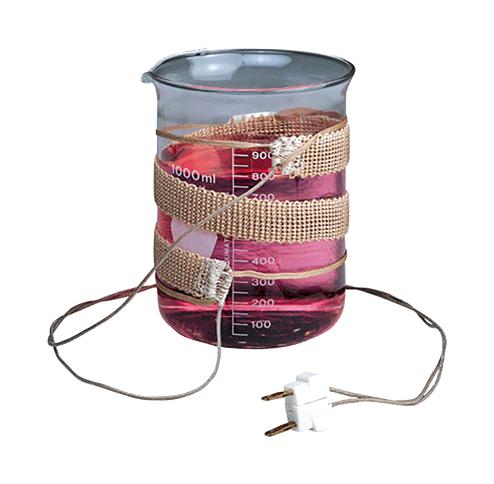

High temperature heating tapes are fiberglass insulated heating elements designed for direct contact on conductive surfaces, withstanding exposure up to 480°C. Made from fine gauge resistance wires, these tapes feature double-braided fiberglass insulation for durability and safety. Available in standard, wide, and heavy insulated options, they are flexible and suitable for industrial heating applications. The tapes include integral molded separable plugs, with lead wires emerging from opposite ends, complying with high dielectric strength exceeding 2000 V. Ideal for demanding environments, these tapes offer fast thermal response and reliable performance.
OMEGA FGH051020 Fiberglass Heating Tape Specifications:
- Heating Elements: 36-40 gage resistance wire
- Lead Wires: Emerge from opposite ends into separate sides of an integrally molded separable plug
- Heating Element Insulation: Double-braided fiberglass
- Dielectric Strength: In excess of 2000 V
- Maximum Exposure Temperature: 480°C (900°F)
- Insulation Material: Braided fiberglass
- Voltage Rating: 120 V, 240 V options available
- Maximum wattage varies by size and model, from 105 W to over 1254 W
- Tapes available in standard, wide, and heavy insulated versions with various lengths and widths
- Construction includes resistance wires, fiberglass braiding, and optional integral plugs
- Designed for direct contact heating on conductive surfaces, with high flexibility and thermal response
Buy the Buy Fiberglass Insulated Heating Tape Part Number FGH051020 Online
Enhance your industrial heating solutions with high-temperature fiberglass insulated tapes that can withstand up to 480°C. These tapes feature double-braided fiberglass insulation for durability, flexible design for easy installation, and integral molded plugs for convenience. Suitable for direct contact on conductive surfaces, they provide fast thermal response and reliable long-lasting performance in demanding environments. Perfect for process heating, manufacturing, or maintenance tasks, these tapes ensure safety and efficiency for various industrial heating applications, with easy online purchasing options available.
Get Fiberglass Insulated Heating Tape FGH051020 today—designed for high-temperature industrial applications with fast thermal response and reliable durability.
Frequently Asked Questions
Where can I buy OMEGA FGH051020?
You can click on the BUY or RFQ button to purchase FGH051020 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FGH051020?
You can download the FGH051020 datasheet or visit the OMEGA website for support.
Who is the manufacturer of FGH051020?
OMEGA
