OMEGA LCR750 S-Beam Load Cell
The LCR Series S-Beam Load Cells are rugged and high-accuracy instruments designed for industrial weighing and force measurement applications. Made with lightweight aluminum for ranges up to 1000 pounds and stainless steel for higher capacities, they feature a 5-point NIST traceable calibration, 3 mV/V output, and a linearity of +0.03%. Operating within -18 to 71°C, these load cells include load buttons and rod ends, with protection level IP55 and a safe overload of 150%. Easy to wire with a 20-foot cable, they are ideal for precise industrial force measurement.
OMEGA LCR750 S-Beam Load Cell Specifications:
- Excitation: 10 Vdc, 15 V max
- Output: 3 mV/V 40.25%
- Linearity: +0.03%
- Hysteresis: +0.02%
- Repeatability: +0.01%
- Creep (20 min): +0.03%
- Operating Temperature: -18 to 71°C (0 to 150°F)
- Compensated Temperature: 17 to 71°C (60 to 160°F)
- Zero thermal effect: +0.0027% FS/°C
- Span thermal effect: +0.0015% rdg/°C
- Safe Overload: 150% capacity
- Ultimate Overload: 300% capacity
- Bridge Resistance: 350 Q nominal
- Material: Aluminum for 1K lb ranges; 17-4 PH stainless steel for higher ranges
- Electrical connection: 6 m (20') cable
- Wiring: Red (+) Excitation, Black (-) Excitation, Green (+) Output, White (-) Output
- Protection Level: IP55

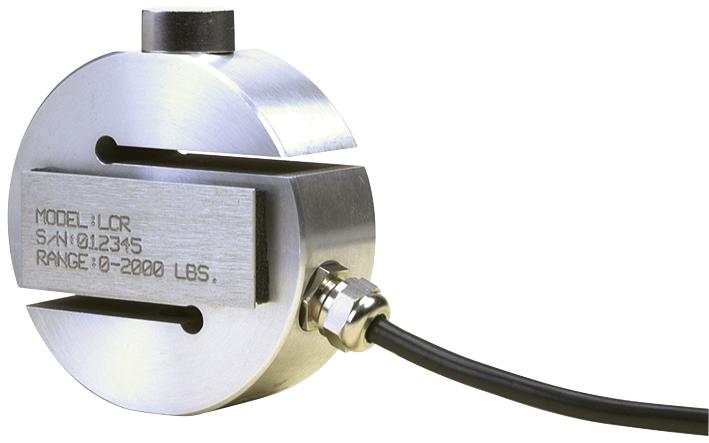

Buy the Industrial Series S-Beam Load Cell: LCR750
Enhance your industrial measurement systems with the Newport S-Beam Load Cell. Engineered for durability and precision, this rugged load cell covers capacities from 25 to 10,000 pounds, featuring accurate calibration, IP55 protection, and corrosion-resistant materials. Its straightforward wiring, compatibility with strain meters, and high overload limits make it ideal for demanding environments. Whether for tension, compression, or force measurement, the S-Beam Load Cell ensures reliable performance, making it the perfect choice for industrial force and weight measurement tasks.
Get Newport LCR750 load cell today—built for precision and long-lasting durability in force measurement applications.
Frequently Asked Questions
Where can I buy OMEGA LCR750?
You can click on the BUY or RFQ button to purchase LCR750 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCR750?
You can download the LCR750 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCR750?
OMEGA
