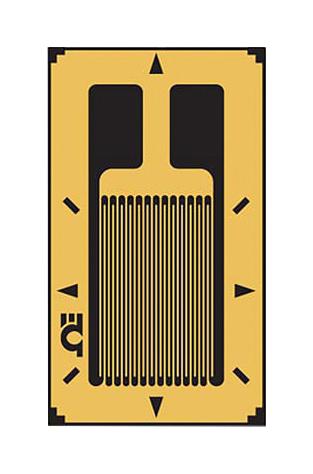

OMEGA SGD6120LY41 Linear Strain Gage
The SGD 6120 LY41 is a precision linear strain gage designed for static and dynamic applications. Its rugged construction features a flexible, miniature pattern formed by etched constantan foil, sealed in a polyimide carrier. Suitable for strain measurement in high-gradient or stress concentration zones, it offers compatibility with steel and aluminum through temperature compensation. The gage includes solder pads for easy attachment and is ideal for experimental stress analysis with clear alignment markings for precise installation, ensuring accurate measurement of strain in various industrial scenarios.
OMEGA SGD6120LY41 Linear Strain Gage Specifications:
- Pattern Type: Linear pattern
- Carrier Material: Polyimide film
- Grid Pattern: 4.9 mm length, 1.9 mm width
- Model Number: SGD-6120-LY41
- Nominal Resistance: 120 Ω
- Temperature Compensation: Yes, suitable for steel and aluminum (ST, AL)
- Leads: Solder pads or ribbon leads
- Size (L x W): 9.80 mm x 1.90 mm
- Sealing: Completely sealed for durability
- Application: Static and dynamic strain measurement
- Precision: High accuracy for stress analysis
Buy the Omega SGD6120LY41 – Reliable Linear Strain Gage for Industrial Applications
Order the Omega linear strain gage SGD6120LY41 online today. Designed for static and dynamic stress analysis, its durable construction ensures high accuracy. Ideal for experimental stress analysis, this gage features a sealed polyimide carrier, solder pads, and optional ribbon leads for easy installation. Its compact size and high precision make it suitable for stress concentration zones and high-gradient areas, ensuring reliable performance across a broad temperature range. Invest in reliable, high-quality strain measurement components for your industrial testing needs.
Get Omega SGD6120LY41 today—built for precise static and dynamic strain measurements in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA SGD6120LY41?
You can click on the BUY or RFQ button to purchase SGD6120LY41 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SGD6120LY41?
You can download the SGD6120LY41 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SGD6120LY41?
OMEGA
