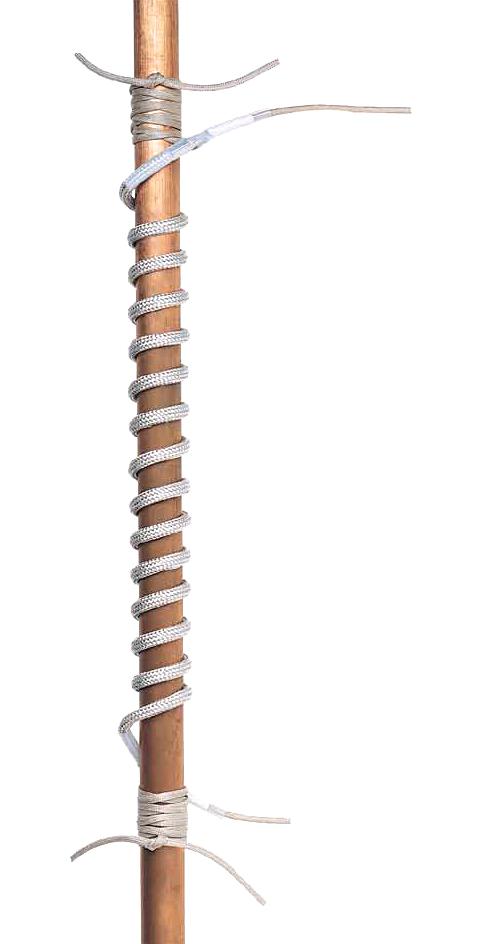

OMEGA FGR100 Flexible Rope Heater
OmegaFlex FGR Series Rope Heaters are versatile heating elements designed for wrapping around small diameter pipes and tubes with diameters as small as 3.2 mm. Operating at temperatures up to 482°C (900°F), these flexible heaters are ideal for conductive and non-conductive surfaces, providing uniform heat distribution. Each heater has sturdy fiberglass-insulated lead wires measuring 610 mm (24 inches) at each end, and features convenient ties for secure installation. Available in multiple lengths and wattages, the FGR Series is suitable for various industrial heating applications requiring precise temperature control and flexibility.
OMEGA FGR100 Flexible Rope Heater Specifications:
- Maximum Allowable Temperature: 482°C (900°F)
- Suitable for Use on Conductive Surface: Yes
- Resists Moisture, Vapor, or Chemicals: No
- Standard Diameter: 5 mm
- Voltage: 120 Vac or 240 Vdc, 240V optional
- Linear Wattage: 4 Watts per inch
- Heater Lengths: 0.9 m, 1.8 m, 2.4 m, 3.0 m (3, 6, 8, 10 feet)
- Lead Length: 610 mm (24 inches)
- Termination: Stripped leads
- Model FGR-030: 0.9 m, 125 Watts
- Model FGR-060: 1.8 m, 250 Watts, 120 Vac
- Model FGR-080: 2.4 m, 400 Watts, 120 Vac
- Model FGR-100: 3.0 m, 500 Watts, 120 Vac
- Features: Wraps around small diameter pipes, convenient ties at each end, withstands high temperatures, suitable for industrial heating
Buy the Omega Series FGR Rope Heaters: FGR100
Purchase the Omega Series FGR100 flexible rope heater online today for dependable, high-temperature heating solutions. Designed to wrap around small diameter pipes as small as 3.2 mm, this heater operates at up to 482°C (900°F). It features quick installation with ties at each end and comes in multiple lengths and wattages to suit your specific needs. Perfect for industrial applications requiring precise heat delivery, these heaters are durable, easy to install, and provide consistent performance for efficient process heating.
Order your Omega Series FGR100 rope heater today and ensure reliable, flexible heating for small pipes and tubes in your industrial processes.
