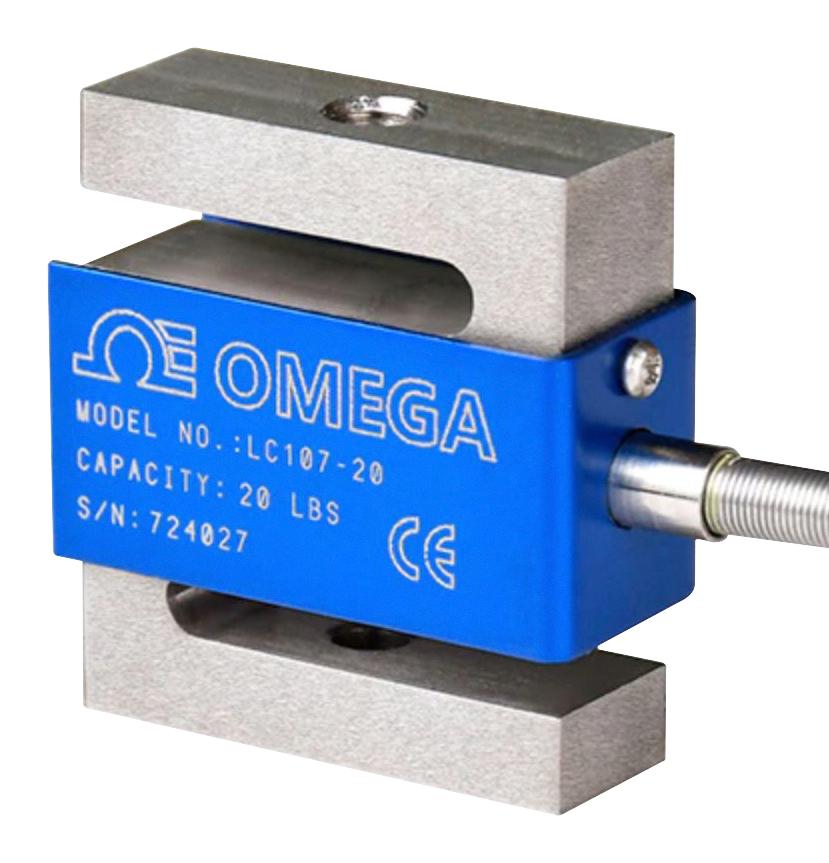

OMEGA LC10710 Miniature S-beam Load Cell
The LC107 series offers ultra-compact, high-accuracy S-beam load cells designed for tension and compression force measurement in space-constrained applications. Made of stainless steel with aluminum covers, these miniature load cells feature a size of only 1.25x0.5x1.1 inches, providing high linearity of 0.1% even at 10 lb capacity. They are temperature compensated, NIST calibrated, and designed for durability with a 300% overload protection, making them suitable for scales, machinery, packaging, and testing environments demanding precise force measurement.
OMEGA LC10710 Miniature S-beam Load Cell Specifications:
- Output: 2 mV/V 10% FSO
- Excitation: 5 Vdc Nominal, 15 Vdc Maximum
- Linearity: +0.1% FSO
- Hysteresis: +0.1% FSO
- Repeatability: +0.05% FSO
- Zero Balance: 41.0% FSO
- Operating Temperature Range: -40 to 93°C (-40 to 200°F)
- Compensated Temperature Range: 15 to 71°C (60 to 160°F)
- Thermal Effects - Zero: +0.009% FSO/°C (+0.005% FSO/°F)
- Thermal Effects - Span: +0.009% FSO/°C (+0.005% FSO/°F)
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Ingress Protection: P40
- Construction Materials: Stainless Steel with Aluminum Side Cover
- Dimensions: Length 1.25 inches, Width 0.5 inches, Height 1.1 inches
- Additional specifications include robust design for tension and compression, NIST traceable calibration, and high overload protection suitable for industrial force measurement applications.
Buy the Omega LC107 – Reliable Force Measurement for Industrial Applications
Purchase Omega LC107 miniature S-beam load cell online today to ensure accurate, reliable measurement of tension and compression forces. Its compact size fits perfectly in space-constrained environments, making it ideal for scales, machinery, and test equipment. With high linearity of 0.1%, NIST traceability, and durable stainless steel construction, this load cell guarantees long-term performance. Whether for industrial, manufacturing, or research applications, order now for quick delivery and exceptional reliability in force measurement solutions.
Get Omega LC107 today—built for precision and long-lasting durability in force measurement tasks.
Frequently Asked Questions
Where can I buy OMEGA LC10710?
You can click on the BUY or RFQ button to purchase LC10710 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC10710?
You can download the LC10710 datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC10710?
OMEGA
