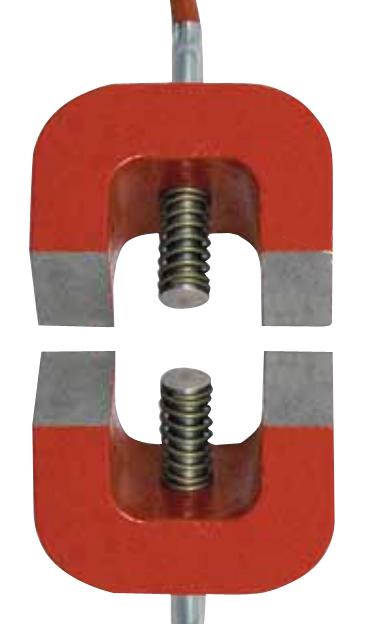

OMEGA PRMAG2100AS1M Magnetic Surface Temperature Sensor
The Magnet Mount Pt100 RTD sensor from the PRMAG Series is designed for precise surface temperature measurement of ferrous materials. Featuring a spring-mounted probe with a powerful 6 kg pull magnet, it ensures secure attachment during operation. Equipped with a Class A platinum element and standard 4-wire construction, it offers high accuracy and durability. Available with various lead wire insulations and termination options, the sensor withstands temperatures up to 400°C (752°F). Its compact dimensions, combined with versatile cable choices, make it suitable for diverse industrial applications requiring surface temperature monitoring.
OMEGA PRMAG2100AS1M Magnetic Surface Temperature Sensor Specifications:
- Temperature Range: Up to 400°C (752°F)
- Sensor Element: Class A platinum RTD
- Construction: 4-wire configuration
- Magnet Force: 6 kg (13 lb)
- Dimensions: 25 mm H x 40 mm W x 25 mm D
- Lead Insulation Options: PVC, PFA, Fiberglass, Silicone Rubber
- Cable Lengths Available: 1 meter (custom length options for additional cost)
- Connector: TA4FL miniature connector with latch lock mechanism
- Maximum Temperature of Cable Insulation: PVC 100°C, PFA 250°C, Fiberglass 400°C, Silicone 200°C
- Material: Spring-mounted probe with magnetic mount for ferrous surfaces
- Application: Surface temperature measurement of ferrous materials in industrial environments
- Compatibility: Works with standard RTDs and connectors
Buy the Buy Omega Thermocouple Part Number PRMAG2100AS1M Online
Shop the Omega Magnetic Surface Temperature Sensor, PRMAG Series, with Pt100 RTD, spring-mounted probe, and powerful magnet for secure attachment on ferrous surfaces. Available with various cable insulation options, including PVC, PFA, fiberglass, and silicone, capable of withstanding temperatures up to 400°C. Equipped with a compact size and connectable via TA4FL miniature connectors, it ensures precise surface temperature readings in industrial applications. Order online now and benefit from reliable performance and flexible installation options for your temperature monitoring needs.
Buy Omega PRMAG2100AS1M now and experience unmatched reliability and high-temperature surface temperature measurement with magnetic mounting capability.
