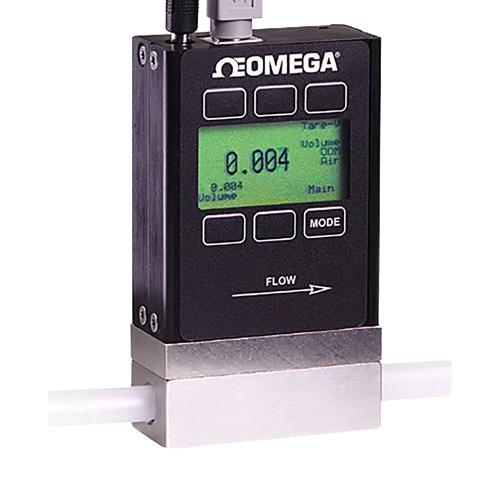

OMEGA FMA1602AI Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters utilize differential pressure within a laminar flow field to precisely measure gas flow rates. Equipped with a laminar flow element (LFE), the system promotes streamlined flow, with pressure drops directly related to volumetric flow according to the Poiseuille equation, factoring in gas viscosity. Incorporating separate sensors for temperature and pressure, it provides accurate flow readings under standard conditions. Key features include a maximum flow of 1 SCCM, 4-20 mA output, RS232 interface, and compatibility with 10 to 32 UNF threads. It offers 130+ calibrations, no warm-up or straight pipe needed, and a 200:1 turndown ratio, making it ideal for clean gases analysis.
OMEGA FMA1602AI Gas Flow Meter Specifications:
- Flow Range: 0.5 SCCM to 1 SLM
- Accuracy: ±0.8% of reading + 0.2% FS
- Repeatability: ±0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms default, field adjustable
- Output: 0-5 V standard, 4-20 mA optional
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Max Pressure: 145 psig
- Humidity Range: 0-100% non-condensing
- Power Supply: 7-30 Vdc
- Wetted Parts: 302/303 SS, FKM, silicone RTV, glass reinforced PPS, epoxy, aluminum, gold, brass, 430 FR stainless
- Connections: 10-32 UNF thread (or FNPT for some models)
- Communication: RS232 standard, optional RS485
- Calibration: Over 130 gases, includes NIST 5-point cert
- Response Time: 10 ms typical, field adjustable
Buy the Buy Omega Gas Flow Meter Part Number FMA1602AI Online
Purchase the Omega FMA-1602AI gas flow meter online today for precise measurement of clean gases. Featuring differential pressure sensing, 130+ calibrations, RS232 communication, and a 200:1 turndown ratio, this device offers high accuracy, quick response, and easy operation. It’s ideal for laboratory, industrial, and research applications requiring reliable flow data. Comes with a 24 VDC power supply, connector, calibration certificate, and manual. Experience seamless integration and accurate performance—order now for rapid delivery and expert support.
Get Omega FMA-1602AI today—built for precision and long-lasting durability in gas flow measurement applications.
