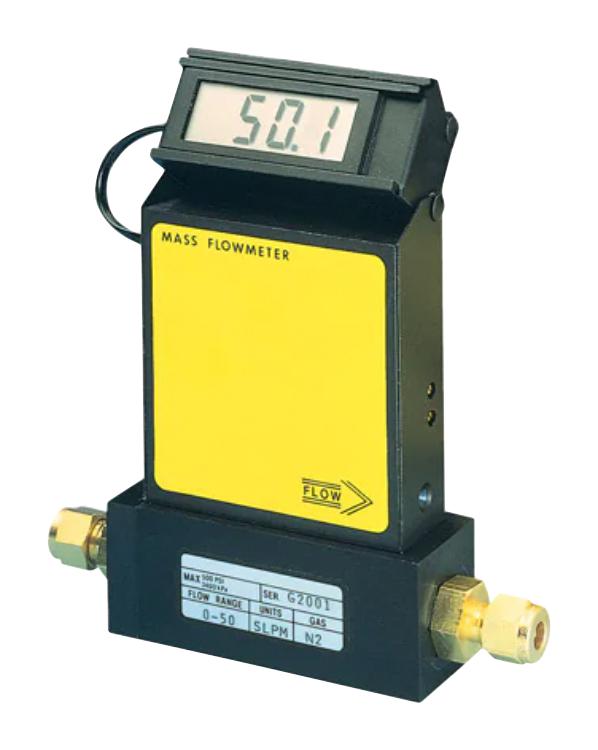

OMEGA FMA1818A Gas Flow Meter
The FMA1818A is an electronic gas mass flow meter designed for precise monitoring of a wide range of gases from 5 to 100 SLM. It features a tiltable LCD display for easy reading and operates without temperature or pressure compensation, utilizing heat transfer through a heated tube. Suitable for both economical aluminum and corrosion-resistant 316 stainless steel constructions, it offers analog output options, external power supply compatibility, and high accuracy. Ideal for laboratory, industrial, or field applications requiring reliable gas flow measurements with easy remote monitoring capability.
OMEGA FMA1818A Gas Flow Meter Specifications:
- Accuracy: +1% of full scale over 15 to 25°C and 5 to 60 psia
- Repeatability: +0.5% of full scale
- Temperature Coefficient: 0.15% of full scale per °C or better
- Maximum Pressure: 500 psig, up to 1000 psig for ranges up to 100 SLM
- Temperature Range: 0 to 50°C (32 to 122°F)
- Response Time: 800 ms, typical 2 seconds within 85-90% of set flow
- Max Gas Pressure: 500 psig standard, 1000 psig for lower flow ranges
- Materials in Contact: Anodized aluminum, 316 SS, brass, FKMO-rings
- Output Signal: 0 to 5 Vdc (1000 Ω min load), 4 to 20 mA (50-250 Ω loop resistance)
- Power Supply: 12 Vdc ±10%, 200 mA max, external power supply required
- Leak Integrity: 1 x 10^-6 std cc/sec helium
- Dimensions (cm): Aluminum model 14.2 L, 2.5 W, Stainless Steel model similar, detailed dimensions vary
- Weight: Approx. 1.1 kg (2.5 lbs)
Buy the Economical Gas Flow Meters Series FMA1800A: FMA1818A
Purchase the Economical Gas Flow Meter Series FMA1800A FMA1818A online today and benefit from highly accurate, reliable gas flow measurement across a variety of gases. Designed for industrial and laboratory use, this meter features a tiltable LCD display, multiple output options, and corrosion-resistant construction options. Its high accuracy of ±1% ensures precise readings, while the easy remote monitoring via analog output makes it ideal for integration into automated systems. Take advantage of quick delivery and technical support by buying online now.
Order your Economical Gas Flow Meters Series FMA1800A FMA1818A today and ensure precise, reliable gas flow measurement for laboratory and industrial applications.
