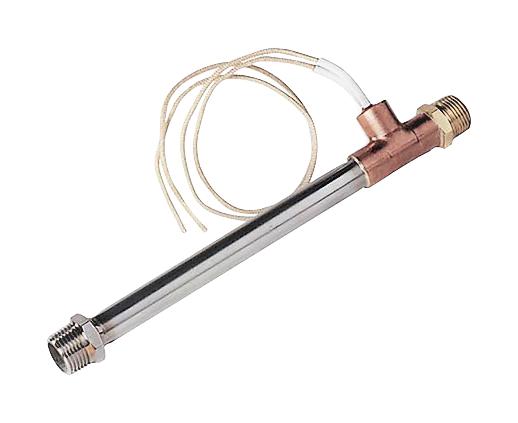

OMEGA AHP5051 Inline Air Heater
The AHP Series in-line air heaters are designed for heating clean, dry air or gas up to 540°C (1000°F), suitable for baking, drying, welding, laminating, and sealing applications. Offered in various models with different power ratings and sizes, these heaters provide precise temperature control through voltage and airflow adjustments. They feature NPT fittings for easy mounting, with options for stainless steel or brass components, and can operate on either 120V or 240V power supplies. Compact and reliable, they are ideal for industrial processes requiring efficient heat and airflow management.
OMEGA AHP5051 Inline Air Heater Specifications:
- Heated Length: 89 mm (3.5 inches) to 140 mm (5.5 inches)
- Power Ratings: 50 W to 750 W
- Maximum Diameter: 20 mm (0.75 inches)
- Flow Rate: Up to 13 SCFM
- Temperature Rating: Up to 540°C (1000°F)
- Voltage: 120 Vac, 240 Vac, or dual voltage options
- Fittings: NPT standard, optional without fittings
- Construction: Ceramic coil support, stainless steel sheath, epoxy seal, fiberglass insulated leads
- Thread Size: NPT female compatible with thermocouples
- Weight: 82 g (0.18 lbs) to 308 g (0.68 lbs)
- Operation: Vertical or horizontal mounting
Buy the Omega AHP-5051 U+2013 Reliable Inline Air Heater for Industrial Applications
Purchase your Omega inline air heater now and experience reliable performance for baking, drying, welding, and sealing tasks. Our heaters come with NPT fittings for quick installation, high temperature capability up to 540°C, and models designed for 120V or 240V operation. Ensure optimal airflow and heating efficiency, backed by quality construction and easy thermocouple monitoring. Order online today and streamline your industrial heating solutions with our durable and precise inline air heaters, perfect for metalworking, packaging, and synthetic manufacturing processes.
Order your Omega Series AHP-5051 inline air heater today and ensure your industrial processes benefit from dependable, precise heat with easy installation.
Frequently Asked Questions
Where can I buy OMEGA AHP5051?
You can click on the BUY or RFQ button to purchase AHP5051 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part AHP5051?
You can download the AHP5051 datasheet or visit the OMEGA website for support.
Who is the manufacturer of AHP5051?
OMEGA
