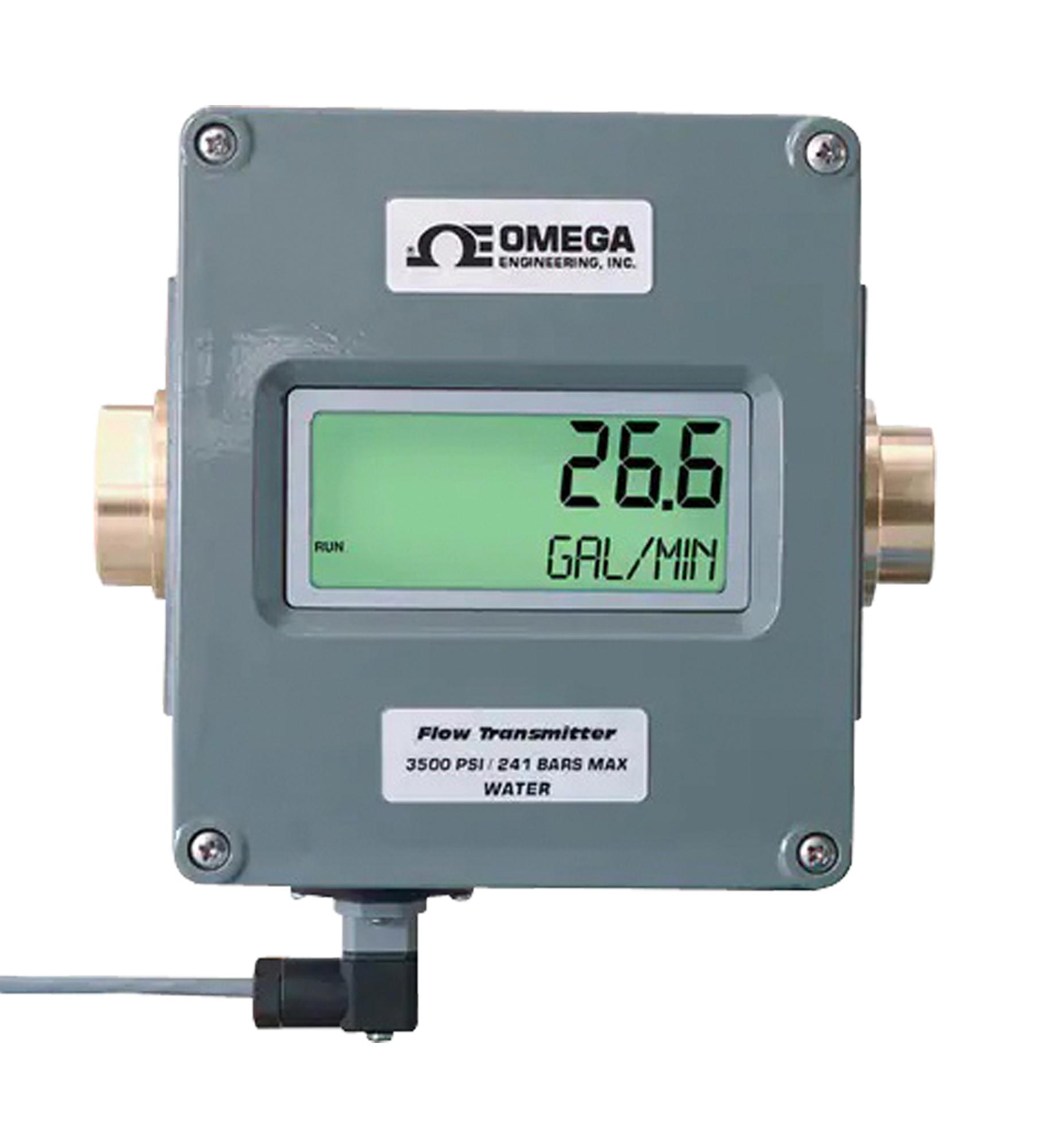

OMEGA FLR9375D Water Flow Meter
This water flow meter is ideal for process control and information systems, with a brass body and a flow range of 10 to 75 GPM. It provides digital flow rate and total flow displays with 2% FS accuracy, and features in-field compensation for specific gravity, viscosity, pressure, and temperature. Designed for easy mounting in any orientation, it supports various outputs including 4-20 mA, 0-5 Vdc, and 0-10 Vdc. The device is rugged, with maximum pressure ratings of 3500 psig for liquids, making it suitable for demanding industrial applications.
OMEGA FLR9375D Water Flow Meter Specifications:
- Flow Range: 10 to 75 GPM
- Medium: Water
- Body Material: Brass
- Maximum Pressure: 3500 psig (liquids)
- Temperature Range: -29 to 116°C (-20 to 240°F)
- Outputs: 4-20 mA, 0-5 Vdc, 0-10 Vdc
- Power Requirements: 10 to 30 Vde @ 0.75 W (Vdc/ Vde)
- Display: 8-digit rate and totalizer, 0.70" high numeric
- Response Time: 1.0 sec
- Repeatability: 0.5%
- Non-Linearity: +0.05%
- Enclosure: Anodized and epoxy-coated aluminum
- Seals: Silicone gasket, FKM O-rings
- Protection Rating: NEMA 12 and 13 (IP52/54)
- Pressure Seals: FKM
- Dimensions: Length 183 mm (7.20 inches), Width 75 mm (2.94 inches), Depth 38 mm (1.51 inches)
- Materials: Aluminum, brass, stainless steel, polycarbonate lens
- Cable: Integral 4.5 m (15') with extension up to 300 m
Buy the Omega Series FLR Water Flow Meter: FLR9375D
Purchase the Omega FLR9375D water flow meter online today to ensure accurate flow measurement for your process control needs. This robust device features a brass body, digital display for flow rate and totalization, and supports multiple analog outputs including 4-20 mA, 0-5 Vdc, and 0-10 Vdc. Designed for easy installation in any position, it withstands high pressures up to 3500 psig. Ideal for industrial water management, it offers a 2% full scale accuracy, making it a reliable choice for demanding applications. Order now for fast shipping and expert support.
Get Omega FLR9375D today—built for precise water measurement and durable process control in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA FLR9375D?
You can click on the BUY or RFQ button to purchase FLR9375D from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FLR9375D?
You can download the FLR9375D datasheet or visit the OMEGA website for support.
Who is the manufacturer of FLR9375D?
OMEGA
