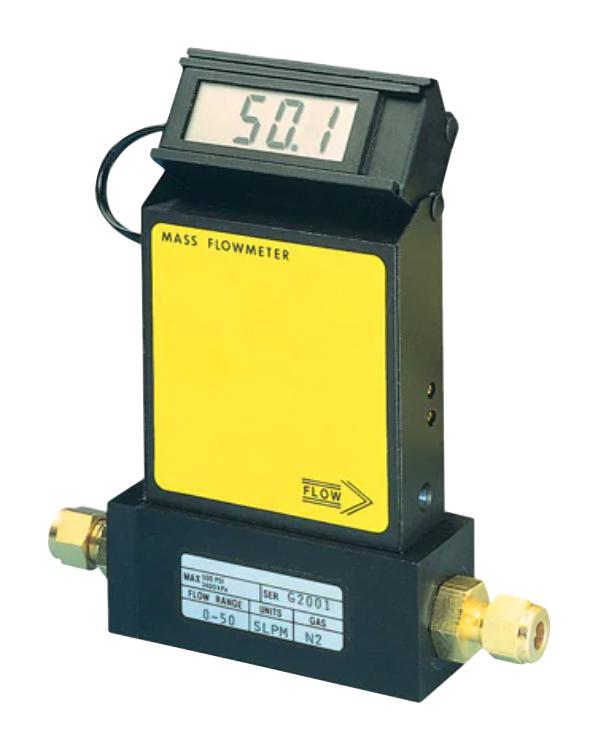

OMEGA FMA1812A Gas Flow Meter
The FMA1812A Series digital gas mass flow meters accurately measure the flow of various gases from 200 SCCM to 500 SLM, utilizing heat transfer technology. Equipped with optional integral tiltable LCD display and analog output, they provide real-time, direct mass flow readings without temperature or pressure compensation within specified limits. Available in economical aluminum or corrosion-resistant 316 stainless steel, these devices are ideal for applications requiring precise gas flow monitoring, portable calibration, or field testing. They meet industry standards, feature quick response times, and are suitable for various industrial and laboratory environments.
OMEGA FMA1812A Gas Flow Meter Specifications:
- Accuracy: +1% of full scale, including linearity over 15 to 25°C and 5 to 60 psia
- Repeatability: +0.5% of full scale
- Temperature Coefficient: 0.15% of full scale per °C
- Pressure Coefficient: 0.01% of full scale per psi
- Maximum Pressure: 500 psig (35 kg/cm2 gage)
- Response Time: 800 msec, typical 2 seconds to within +2% of set flow rate
- Maximum Gas Pressure: 500 psig
- Materials in Contact: Anodized aluminum or 316 SS with FKM O-rings
- Flow Range: 200 SCCM to 500 SLM (for nitrogen or air at 20 psig), other gases require calibration
- Power Supply: 12 Vdc @ 200 mA (with optional power supplies)
- Dimensional Data: Approximate length 15.2 cm (6 inches), width 3.2 cm (1.25 inches), height varies by model
- Leak Integrity: 1 x 10−8 std cc/sec helium maximum
- Output Signal: 0 to 5 Vdc or 4 to 20 mA depending on model
- Response Time: 2 seconds typical
Buy the Economical Gas Mass Flow Meters Series FMA1700A: FMA1812A
Order the FMA1812A gas flow meter online today and enhance your flow monitoring capabilities with precise, reliable measurements. Perfect for industrial and laboratory use, this device features a digital display, corrosion-resistant construction, and fast response time, ensuring you get accurate readings consistently. Its versatile design allows for easy installation and remote monitoring options, making it ideal for field calibration and testing applications. Invest now for improved efficiency and accurate gas management in your processes.
Buy Economical Gas Mass Flow Meters Series FMA1700A: FMA1812A now and experience unmatched accuracy, durability, and portable, reliable gas flow measurement.
Frequently Asked Questions
Where can I buy OMEGA FMA1812A?
You can click on the BUY or RFQ button to purchase FMA1812A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part FMA1812A?
You can download the FMA1812A datasheet or visit the OMEGA website for support.
Who is the manufacturer of FMA1812A?
OMEGA
