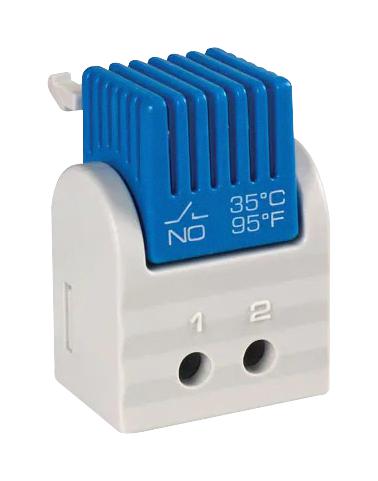

OMEGA FT01160000 Tamperproof Thermostat
The tamperproof thermostat series FTO11 and FTDO11 offers reliable temperature control with a compact, DIN rail-mountable design, featuring dual functionalities with Normally Closed and Normally Open modules. Equipped with a thermostatic bi-metal sensor, these thermostats operate within a temperature range of -40°C to 70°C, making them suitable for various industrial applications. They deliver over 100,000 cycles, ensuring long-term durability. The units have a contact resistance below 20 milliohms, are UL94V-0 rated, and include protective enclosures with NEMA 2 rating. Easy wiring, precise fixed setpoints, and options for dual models make these thermostats versatile for heating, ventilation, and other automation controls.
OMEGA FT01160000 Tamperproof Thermostat Specifications:
- Sensor Element: Thermostatic bi-metal
- Maximum Tolerance: +5.4°F (3K)
- Contact Resistance: <20 mQ
- Service Life: >100,000 cycles
- Service Current: 5 A resistive / 1.6 A inductive @ 240 Vac; DC 30 W
- Minimum Load: 20 mA
- Connections: 2-pole terminal for AWG 14 max, 4-pole for dual models
- Mounting: Clip for 35 mm DIN VQ rail (EN 50022)
- Dimensions: 47 H x 33 W x 33 D mm (1.85 x 1.3 x 1.3 inches)
- Housing: Plastic, UL94V-0
- Weight: 23 g; dual model 40 g
- Protection Type: NEMA 2 (IP20)
- Operating Temperature: -40 to 70°C
- Storage Temperature: -45 to 80°C
Buy the Adis Series Tamperproof Thermostat: FT01160000
Discover the reliable and durable tamperproof thermostats suitable for industrial environments. Featuring fixed setpoints, DIN rail mounting, and high cycle life, these thermostats efficiently handle temperature regulation tasks. Perfect for heating, ventilation, and automation, they ensure safety and precision with robust bi-metal sensors, UL94V-0 rated plastic housings, and NEMA 2 protection. Easy wiring and versatility make them a preferred choice for professionals seeking dependable temperature control solutions. Purchase online today for quality performance and durability in your industrial or commercial applications.
Get Adis FT01160000 today—built for precision and long-lasting durability in industrial temperature control applications.
