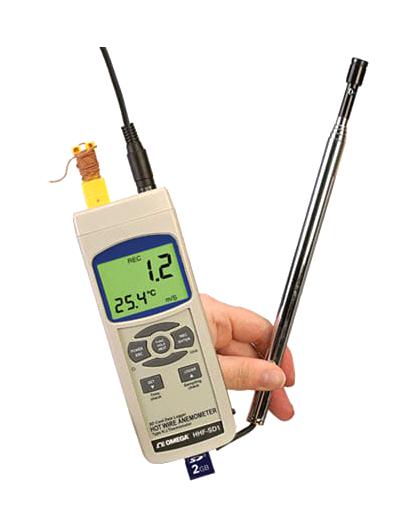

OMEGA HHFSD1 Airflow Meter
The HHF-SD1 combination hot wire and thermistor anemometer features a built-in real-time SD card data logger, ideal for environmental testing, air flow measurements, and balancing. It measures velocity and air temperature precisely, accepting Type J or K thermocouples for accurate temperature readings. The slim probe is suitable for grilles and diffusers, with an LCD backlit display. It interfaces via RS232 or USB for data transfer and includes essential accessories such as a telescoping probe, SD card, and thermocouple, providing fast, reliable measurements even at low velocities. Designed for ease of use in clean rooms, flow hoods, and industrial environments.
OMEGA HHFSD1 Airflow Meter Specifications:
- Display: 52 x 38 mm LCD with green backlight
- Measurement Units: Velocity in m/s, km/h, ft/min, knots, mile/hr; Temperature in °C or °F
- Sensor Construction: Glass bead thermistor
- Sampling Time: Auto 1-3600 seconds, manual single save with logger button
- Memory Card: SD card (2GB included)
- Temperature Compensation: Automatic
- Display Update: Every 1 second
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Operating Humidity: Up to 85% RH
- Power: 6 AAA batteries (included) or optional 9V adapter
- Weight: 515 g
- Dimensions: Instrument 203 x 76 x 38 mm; Probe diameter 12 mm, length 280-940 mm
- Air Temperature Range: 0 to 50°C with 0.1°C resolution
- Velocity Range: 0.2 to 20 m/s, 0.70 to 18 km/h, 40 to 3940 ft/min, 0.4 to 9.7 knots
- Data Output: RS232/USB with optional cable/software
- Includes: telescoping probe, Type K thermocouple, SD card, hard case, batteries, manual.
Buy the Buy Omega HHF-SD1 Hot Wire Anemometer Part Number HHFSD1 Online
Purchase the Omega HHF-SD1 airflow meter online to enjoy fast, accurate airflow and temperature measurements with real-time data logging. Its slim probe and LCD display make it indispensable for environmental testing, clean rooms, flow hoods, and industrial applications. The instrument includes a telescoping probe, SD card, thermocouple, and hard case for portability and durability. Easily transfer data to Excel® without special software, ensuring efficient analysis. Order now for powerful, reliable airflow measurement solutions.
Get Omega HHF-SD1 today—designed for precise airflow measurement and reliable data logging in industrial environments.
Frequently Asked Questions
Where can I buy OMEGA HHFSD1?
You can click on the BUY or RFQ button to purchase HHFSD1 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HHFSD1?
You can download the HHFSD1 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HHFSD1?
OMEGA
