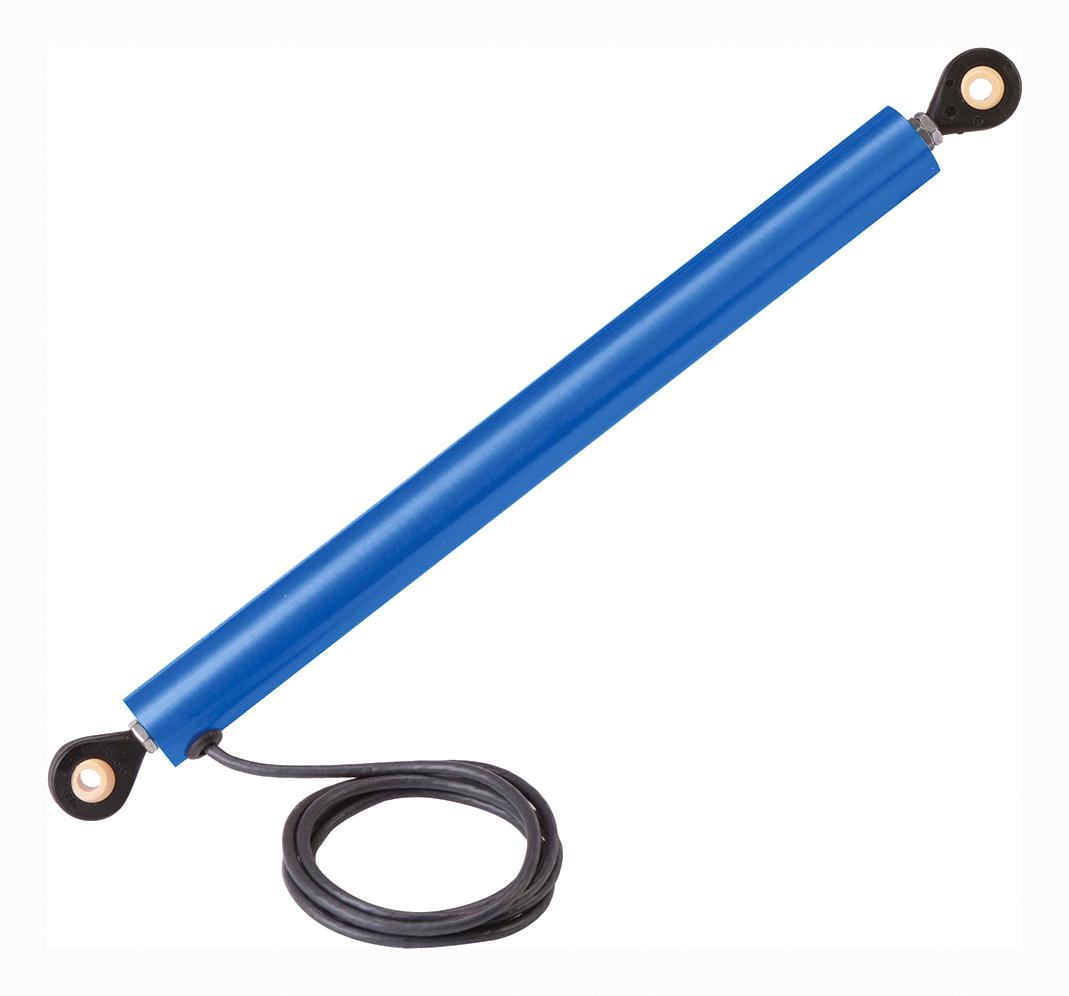

OMEGA LDI119100A020A Linear Position Sensor
The LDI-119 series is a contactless linear inductive transducer designed for precise position sensing in industrial automation and testing applications. Its compact aluminum housing with IP67 sealing and radial cable exit with swivel rod eye ends allow for easy installation and durability under harsh conditions. Offering a choice of measurement ranges from 25 to 200 mm, the sensor provides either 0 to 10V or 4 to 20mA outputs. Features include high accuracy with low linearity error, field programmability, and excellent stroke-to-length ratio, making it ideal for OEM, laboratory, and industrial use.
OMEGA LDI119100A020A Linear Position Sensor Specifications:
- Measuring Range: 25 to 200 mm (1 to 8 inches) full scale
- Output Options: 0 to 10V (12-30V input); 4 to 20mA (18-30V input)
- Linearity Error: +0.15% of FS typical, +0.25% max
- Resolution: 0.025% of full scale
- Update Rate: 300 Hz
- Operating Temperature: -20 to 85°C (-4 to 185°F)
- Vibration: 5 to 20 Hz at 0.5 inches p-p; 20 to 2000 Hz at 4.2 g p-p
- Shock Resistance: 1000 g for 11 ms
- Housing Material: Aluminum with IP67 sealing
- Cable: Radial exit with swivel rod eye ends
- Humidity: 95% RH non-condensing
- Current Draw: 35 mA (0-10V), 60 mA (4-20mA)
- Temperature Coefficient: 0.015% of FS/°C
Buy the Buy Omega LDI-119 Linear Sensor Part Number LDI119100A020A Online
Order the Omega LDI-119 series online to enhance your industrial automation and testing systems. Featuring a compact aluminum housing, IP67 sealing, and a choice of measurement ranges from 25 to 200mm, these sensors ensure reliable, contactless operation in harsh environments. Their high accuracy, low linearity error, and field programmability make them perfect for OEM, laboratory, and factory automation applications. Easy installation with radial cable exit and swivel rod eye ends, these transducers are built for durability and precision in demanding industrial settings.
Get Omega LDI-119 sensors today—designed for precise, contactless position measurement with durable IP67 construction and versatile output options.
Frequently Asked Questions
Where can I buy OMEGA LDI119100A020A?
You can click on the BUY or RFQ button to purchase LDI119100A020A from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LDI119100A020A?
You can download the LDI119100A020A datasheet or visit the OMEGA website for support.
Who is the manufacturer of LDI119100A020A?
OMEGA
