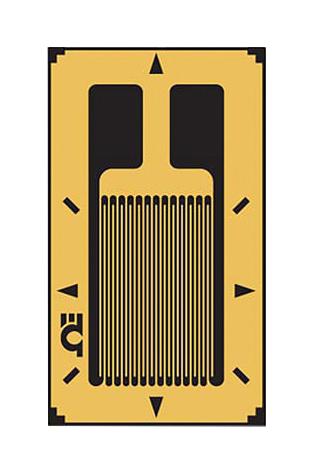

OMEGA SGD15120LY11 Precision Strain Gages
The SGD series of precision linear strain gages are designed for static and dynamic applications, combining flexibility and rugged construction. They feature etched constantan foil grids sealed in polyimide film, with options for ribbon leads or solder pads. Suitable for stress analysis in high-gradient areas, they offer various sizes, grid widths, and temperature compensation types for steel or aluminum. Easy to install with field-trimmable carriers, these gages ensure accurate measurements in demanding environments, perfect for experimental stress analysis and structural monitoring.
OMEGA SGD15120LY11 Precision Strain Gages Specifications:
- Pattern grid lengths: 1.5 mm to 13 mm
- Grid widths: narrow, medium, wide options
- Carrier dimensions vary by model, typically 120 mm to 1000 mm
- Material: Etched constantan foil sealed in polyimide film
- Temperature compensation: Steel (ST), Aluminum (AL), Uncompensated (UNC)
- Terminations: Ribbon leads or solder pads
- Maximum bridge energizing voltage: 120 Vrms to 1000 Vrms depending on model
- Pattern options include linear, long, and extra-long patterns
- Measurement range suitable for high stress concentration zones
- Ease of trimming carrier size in field with no performance loss
- Inherent flexibility allows small bending radius and reliable static/dynamic readings
Buy the Omega SGD15120LY11 – Accurate Precision Strain Gages for Stress Analysis
Enhance your stress measurement capabilities with Omega SGD Series strain gages, engineered for static and dynamic applications. Featuring flexible, rugged construction with options for ribbon leads or solder pads, these high-accuracy sensors are ideal for experimental stress analysis and structural integrity monitoring. Easy to install and field-trimmable, they deliver precise readings in high-gradient or high-stress areas. Trust Omega for reliable, durable, and easy-to-use strain measurement solutions suited for demanding industrial environments, ensuring your testing and monitoring remain accurate and efficient.
Buy Omega SGD Series strain gages now and experience unmatched accuracy and durability in stress analysis and structural testing.
