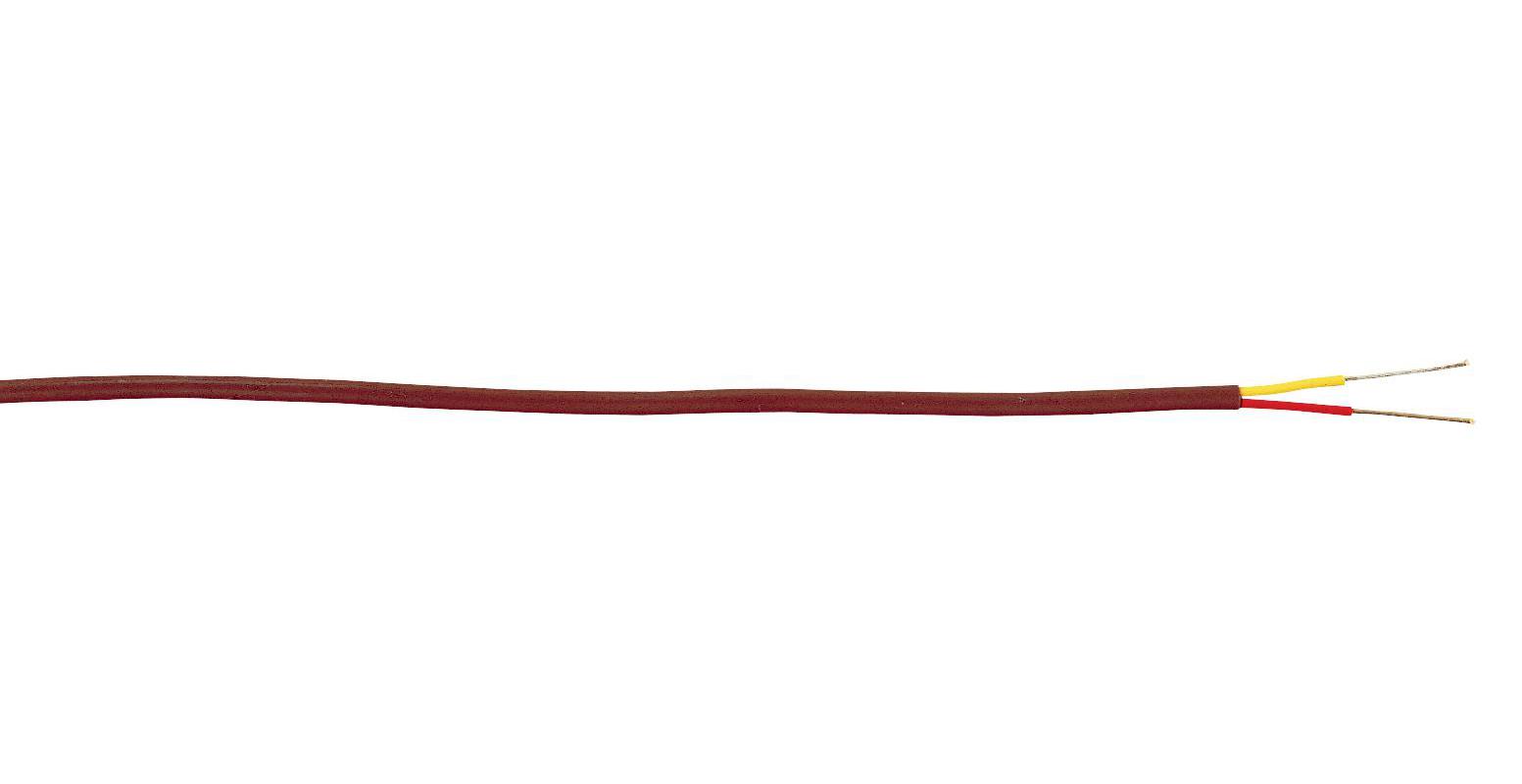

OMEGA GGK20500 Thermocouple Wire
High-quality duplex insulated Type K thermocouple wire with ANSI and IEC color codes, suitable for industrial temperature measurement up to 1090°C. Made with premium insulation materials like PFA, FEP, Polyimide, and Ceramic, ensuring excellent temperature resistance and durability. Available in various sizes and configurations, including shielded and unshielded options, to meet diverse industrial application requirements. Non-reprocessed materials guarantee consistent performance, making this wire ideal for precise, reliable temperature sensing in demanding environments.
OMEGA GGK20500 Thermocouple Wire Specifications:
- Insulation Materials: PFA, FEP, Polyimide, Ceramic, Glass Braid, Stainless Steel Braid, Kapton, Fused Silica
- Maximum Temperature: 1090°C (2000°F) for PFA, Ceramic; 980°C (1800°F) for FEP, Glass Braid; 704°C (1300°F) for High Temp. Solid wire
- Physical Sizes: Ranging from 0.4 mm to 3.8 mm diameter, typical lengths 300 ft and 1000 ft options
- Conductor Type: Solid nickel chromel (Type K) core, shielded and unshielded configurations with shield types including FEP, TFE, polyimide tapes, and stainless steel overbraids
- Color Coding: Positive wire yellow, negative wire red, overall brown, with additional tracers on some jackets
- Certifications: UL Listed, CSA Certified, suitable for industrial temperature sensing, chemical resistance, and durability in harsh environments
- Additional features include special limits of error options, race thread positive leg, trace thread overall, and optional overbraid constructions for enhanced protection
- Spool weight and wire are rounded to the next highest kg or lb, suitable for OEM and industrial installations
Buy the Omega GGK20500 – Reliable Thermocouple Wire for Industrial Applications
Order Omega GGK20500 thermocouple wire online now to ensure precise temperature monitoring in your industrial setup. Crafted with high-temperature resistant insulation materials like PFA, FEP, and ceramic, this duplex insulated Type K wire offers outstanding durability and accurate electrical performance. Various sizes and configurations are available, including shielded and unshielded options, designed for versatile industrial applications. Non-reprocessed materials guarantee consistent quality, making this wire suitable for demanding environments where reliability is critical. Purchase online today for fast delivery and expert support.
Get Omega GGK20500 today—built for precise temperature measurement in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA GGK20500?
You can click on the BUY or RFQ button to purchase GGK20500 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part GGK20500?
You can download the GGK20500 datasheet or visit the OMEGA website for support.
Who is the manufacturer of GGK20500?
OMEGA
