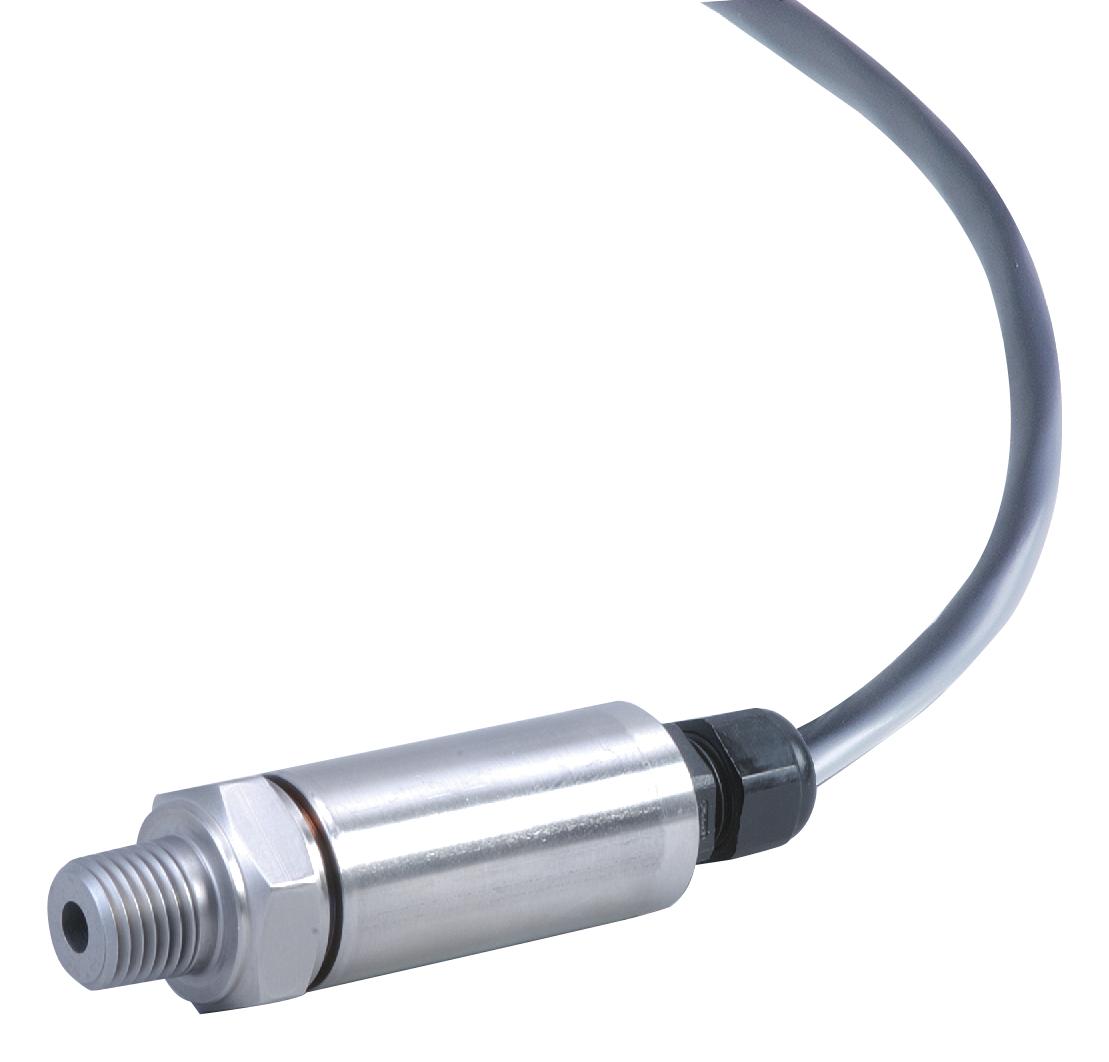

OMEGA PX309300GI Pressure Transducer
The PX309 series high-performance general-purpose pressure transducer utilizes advanced silicon technologies to deliver precise measurements with ±0.25% accuracy. All stainless steel construction ensures durability and resistance in demanding environments. Suitable for gauge, absolute, or vacuum pressure ranges from 0 to 21 bar (0 to 300 psi), it provides a 4 to 20 mA output signal. Designed for stability, low drift, and IP65 protection, it operates from -40°C to 85°C. Features include a 1/4 inch MNPT port, 1.5-meter cable, NIST calibration, and compatibility with vacuum conditions at pressures of 100 psig and above.
OMEGA PX309300GI Pressure Transducer Specifications:
- Accuracy: ±0.25% full scale (linearity, hysteresis, repeatability combined)
- Construction: All stainless steel
- Pressure Range: 0 to 21 bar (0 to 300 psi)
- Output Signal: 4 to 20 mA
- Temperature Range: -40°C to 85°C
- Pressure Port: 1/4 inch MNPT
- Protection Class: IP65
- Calibration: 5-point NIST-traceable
- Electrical Connection: 1.5 m (5 ft) cable
- Operating Conditions: Vacuum conditions at pressures ≥100 psig
- Stability: High stability, low drift
- Additional features: Suitable for gauge, absolute, or vacuum pressure
- Sensor Technology: Silicon strain gages and high-accuracy silicon sensors
Buy the OMEGA Series PX309 Pressure Transducer: PX309300GI
Order the OMEGA PX309 Pressure Transducer online today to ensure accurate, durable, and reliable pressure measurement in demanding environments. This all-stainless steel unit offers ±0.25% accuracy, long-term stability, and versatility for gauge, absolute, or vacuum applications. With a 4-20 mA output, NIST calibration, and operation from -40°C to 85°C, it’s ideal for industrial, manufacturing, and OEM use. Invest now to benefit from quick delivery, expert support, and top-tier performance standards.
Buy OMEGA PX309300GI now and experience unmatched reliability and performance with precise, durable pressure measurements.
Frequently Asked Questions
Where can I buy OMEGA PX309300GI?
You can click on the BUY or RFQ button to purchase PX309300GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX309300GI?
You can download the PX309300GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX309300GI?
OMEGA
