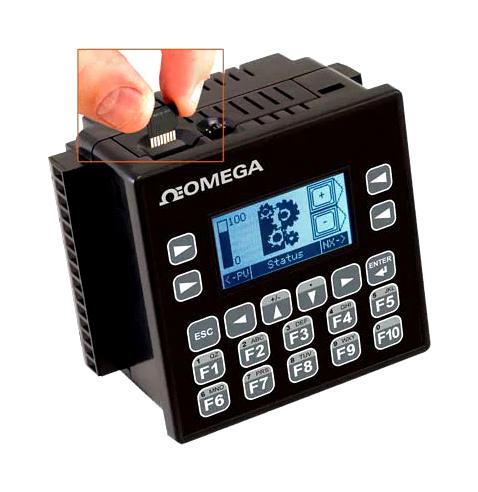

OMEGA HEXT105 Industrial Control Module
The HEXT105 is a compact all-in-one control device that combines PLC, operator interface, I/O, and networking in a palm-sized unit measuring 3.75 inches square. It features a sunlight-readable 160 x 128 pixel graphical display with a resistive touch screen, multiple function keys, and system key. Equipped with built-in DC/DC and universal analog I/O, it supports high-speed counting, PWM, and various sensor connections. Ideal for temperature control, packaging, water treatment, and agriculture, it integrates removable mass storage via MicroSD and offers RS232, RS485, Ethernet, and modem connectivity for versatile industrial applications.
OMEGA HEXT105 Industrial Control Module Specifications:
- Display: 160 x 128 pixels, daylight readable touchscreen
- Keys: 5 function keys, system key
- Memory: 256 KB application memory
- Controller: High-resolution ladder logic scan rate 1.2 mS/K
- I/O: 12 digital inputs (4 high-speed), 12 DC outputs (2 PWM), 2 universal analog inputs, 2 analog outputs
- Analog Input Ranges: 0-10 V, 4-20 mA, RTD, thermocouple, 0-100 mV
- Relay Outputs: 6 relays, 3A each
- Serial Ports: 2 (RS232/RS485)
- Networking: Ethernet optional, supports CsCAN
- Removable Storage: MicroSD card slot, supports up to 2 GB
- Dimensions: 95.1 mm height, 95.1 mm width, 63.9 mm depth
- Weight: 0.354 kg
- Environmental: 0 to 50°C operational
- Certifications: IP66 equivalent washdown protection
Buy the Omega HEXT105 – Reliable Control for Industrial Applications
Order the Omega HEXT105 today to streamline your machine control processes with an all-in-one compact device featuring sunlight-readable display, built-in I/O, and flexible networking options. Its high-speed logic, removable MicroSD storage, and universal analog inputs make it ideal for temperature control, packaging, water treatment, and agricultural machinery. Easy to install, program, and expand, HEXT105 ensures reliable operation in demanding industrial environments. Buy online now and optimize your automation activities with this versatile control solution.
Buy Omega HEXT105 now and enhance your automation with a compact, feature-rich PLC and operator interface with easy data storage and versatile connectivity.
Frequently Asked Questions
Where can I buy OMEGA HEXT105?
You can click on the BUY or RFQ button to purchase HEXT105 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HEXT105?
You can download the HEXT105 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HEXT105?
OMEGA
