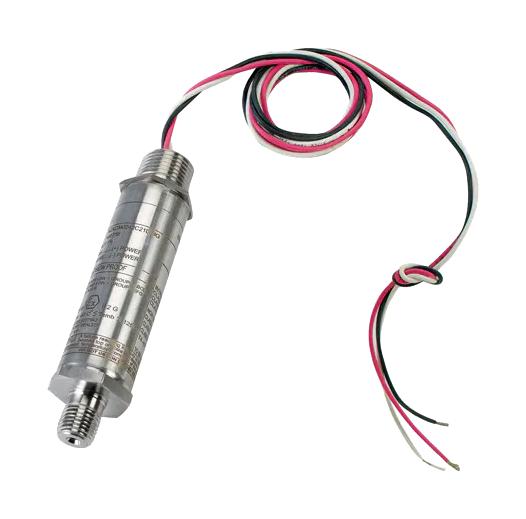

OMEGA PX835300GI Pressure Transmitter
The PX835 explosion-proof pressure transmitter is suitable for hazardous Area environments, especially in oil and gas industries. It features a stainless steel welded case, precise digital calibration, and an all stainless steel sensing element, ensuring accurate and reliable measurements across broad pressure ranges up to 10,000 psi. Designed with safety certifications such as Explosion Proof, Flame Proof, and Intrinsically Safe approvals, it offers a 4-20 mA output, NPT conduit fitting, and temperature resilience from -40°C to 125°C. Ideal for upstream oil, natural gas, and renewable energy applications, it provides stable, linear data for critical operations.
OMEGA PX835300GI Pressure Transmitter Specifications:
- Output: 4 to 20 mA (2-wire)
- Supply Voltage: 12 to 32 Vdc
- Insulation Resistance: 100 MΩ @ 30 V
- Accuracy: +0.5% TP; +0.40% BFSL
- Stability: <+0.25% span/year
- Response Time: 2 ms
- Temperature Range: -40°C to 125°C
- Compensated Temperature: -20°C to 85°C
- Environmental Rating: NEMA 7, 9 (IP65)
- Pressure Ranges: Vac to 10,000 psi, 0 to 690 bar
- Materials: 316SS diaphragm, pressure port; 304 SS case
- Overpressure Protection: 1.5 x FS for Vac to 300 psi, 1.2 x FS for 500 to 10,000 psi
- Electrical Termination: NPT male conduit fitting & 15 ft cable
- Dimensions: Approx. 27 mm hex. for fittings, overall length varies
- Hazardous Area Certifications: cUL, ATEX, FM/CSA, CE
- Weight: Approximately 254 g
Buy the Industrial Sensors PX835 – Reliable Pressure Transmitter for Industrial Applications
Buy the PX835 series pressure transmitter online today for your hazardous location projects. Designed for oil, gas, and energy industries, it offers explosion/flame proof safety, accurate digital calibration, and a robust stainless steel case. With a 4-20 mA output, NPT conduit fitting, and certification for hazardous areas, this transmitter ensures reliable, stable data for critical applications. Shop now to enhance safety, precision, and performance in your industrial processes with quick online ordering and dedicated customer support.
Order your industrial PX835 series pressure transmitter today and ensure your hazardous industrial projects operate safely and efficiently with proven reliability.
Frequently Asked Questions
Where can I buy OMEGA PX835300GI?
You can click on the BUY or RFQ button to purchase PX835300GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX835300GI?
You can download the PX835300GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX835300GI?
OMEGA
