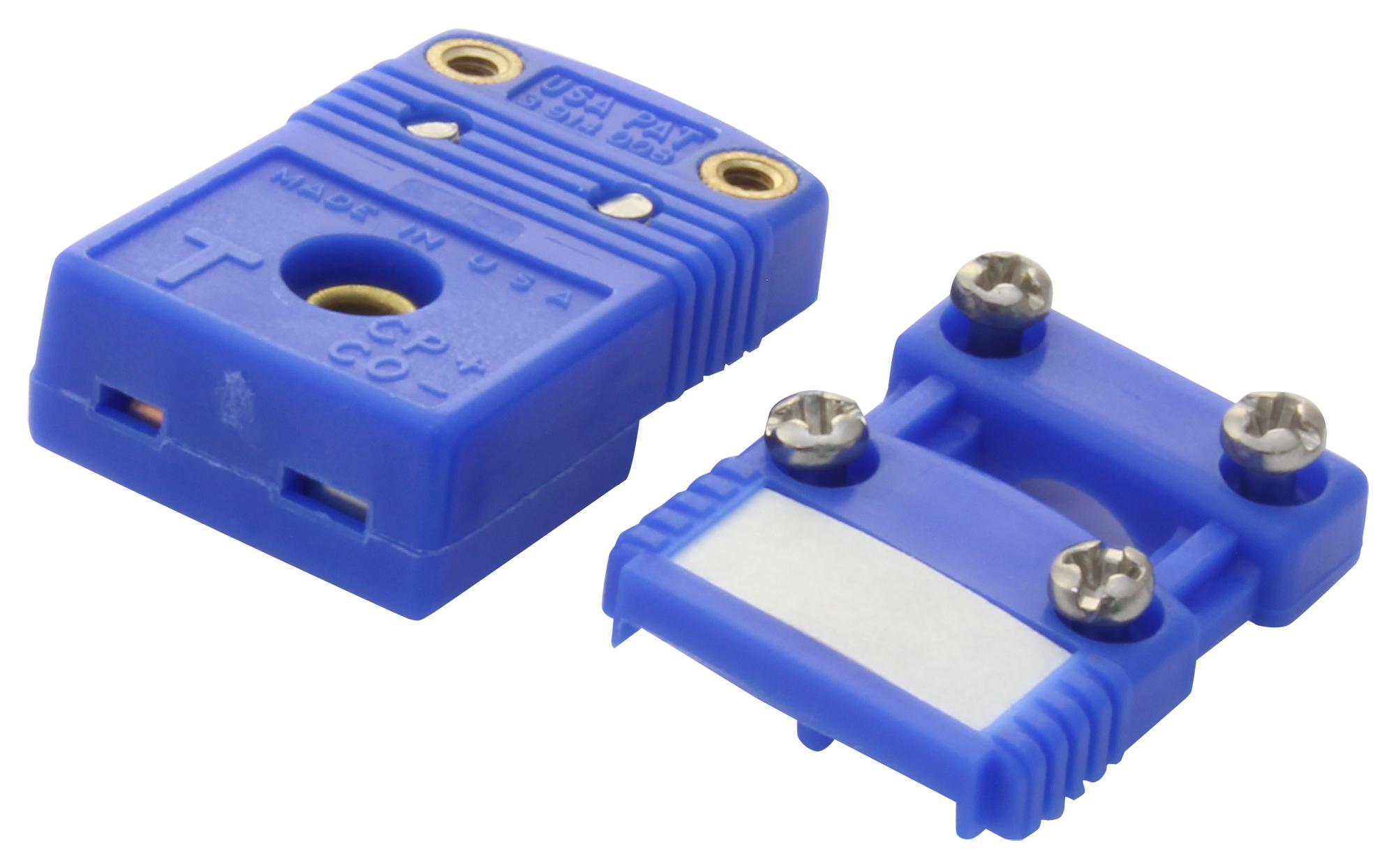

OMEGA SMPWCCTF Thermocouple Connector
The Newport SMPW thermocouple wire connector is a compact, easy-to-use two-pin miniature connector designed for precise attachment of temperature sensors to various control systems. Made from durable glass-filled nylon, it features an integral cap, cable strain relief with grommet, captive cover and clamp screws, internal wire divider, write-on window, and combination Phillips/slot screws. The connector supports connection of stranded or solid wires up to 20 AWG, including armored cables. Rated from -29°C to 180°C (-20°F to 356°F), it ensures reliable, high-performance thermocouple connections in tight spaces.
OMEGA SMPWCCTF Thermocouple Connector Specifications:
- Material: Glass-filled nylon
- Temperature Rating: -29°C to 180°C (-20°F to 356°F)
- Wire Range: Up to 20 AWG, stranded or solid
- Cable Diameter: Up to 5.5 mm (0.22") OD
- Connector Color Options: Yellow, Blue, Black, Purple, Green, Red, White, Orange
- Rated Voltage: Not specified
- Hardware: Combination Phillips and Slot screws, captive cover and clamp screws (0.22" OD)
- Features: Integral cap, cable clamp strain relief with grommet, internal wire divider, write-on window
- Assembly: Entirely top side, quick assembly tool included
- Dimensions: Compact, size shown larger than actual in diagrams
- Temperature Rating: support for wide range applications
- Compliance: Suitable for industrial thermocouple connections
Buy the Buy Newport Thermocouple Connector Part Number SMPWCCTF Online
Order the Newport thermocouple connector online today for reliable temperature sensor connections in industrial and laboratory applications. Its compact design, rated from -29°C to 180°C, ensures high performance in tight spaces. Made from glass-filled nylon, it features an integral cap, strain relief with grommet, captive screws, internal wire divider, and write-on window for easy identification. Compatible with stranded or solid wires up to 20 AWG, it simplifies thermocouple terminations. Reliable and durable, it’s ideal for process control, automation, and temperature measurement systems.
Get Newport SMPW thermocouple connector today—designed for precise temperature sensing with durable nylon construction and easy top-side assembly.
Frequently Asked Questions
Where can I buy OMEGA SMPWCCTF?
You can click on the BUY or RFQ button to purchase SMPWCCTF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SMPWCCTF?
You can download the SMPWCCTF datasheet or visit the OMEGA website for support.
Who is the manufacturer of SMPWCCTF?
OMEGA
