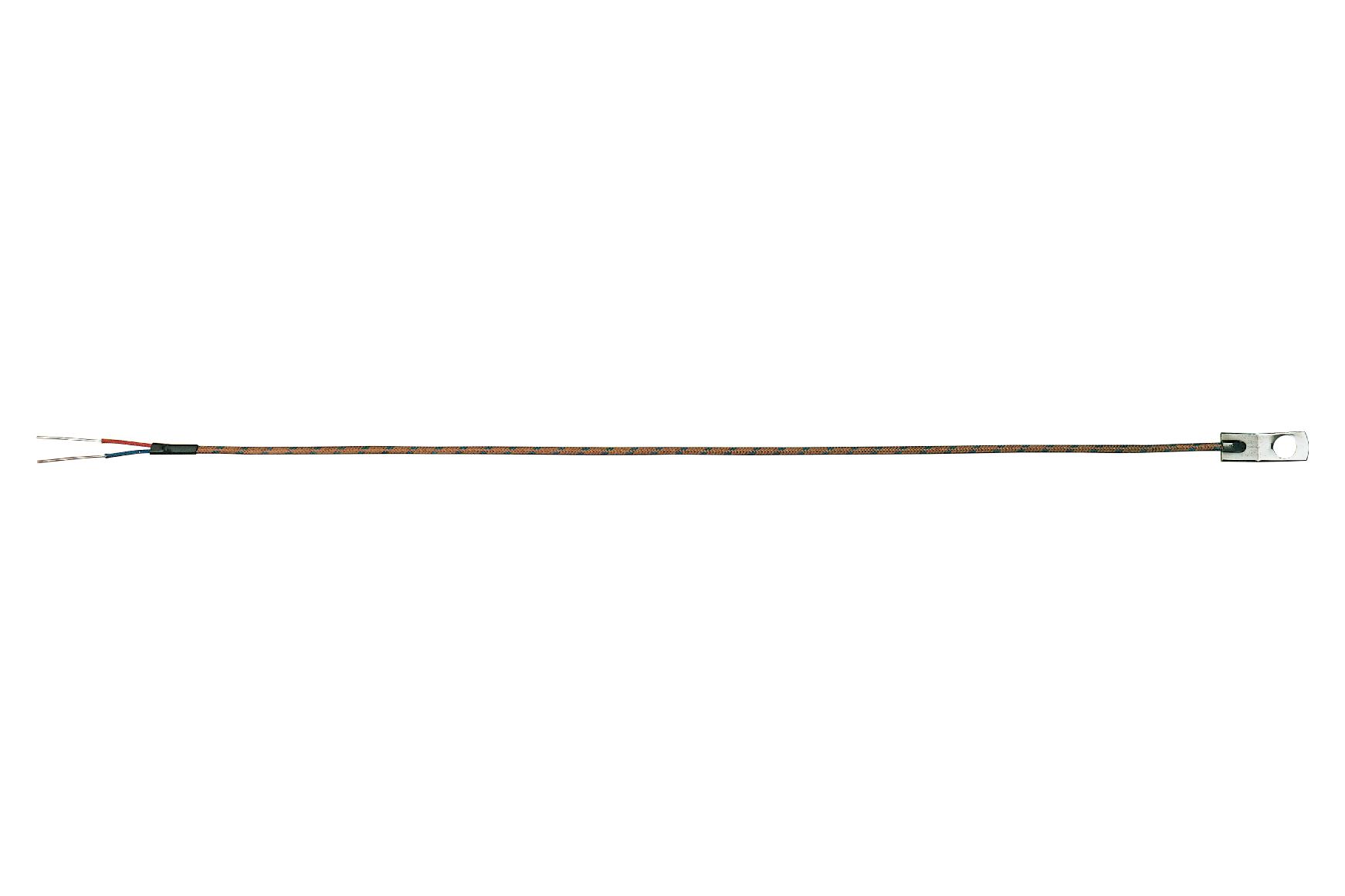

OMEGA WTK812 Surface Temperature Thermocouple
This bolt-on Type K thermocouple features a stainless steel washer housing for durable, reliable temperature measurement in industrial environments. It has a rugged design with stripped end leads, making installation straightforward and versatile. The thermocouple is rated for glass applications up to 480°C (900°F), suitable for high-temperature processes. It comes with various screw sizes and mounting dimensions, and can be customized with different insulation types or lengths. Perfect for surface mounting where precise temperature monitoring is essential in manufacturing or processing plants.
OMEGA WTK812 Surface Temperature Thermocouple Specifications:
- Type: K thermocouple
- Material: Stainless steel washer housing
- Lead wire: Stripped PFA insulated, 20 AWG solid wire
- Temperature Rating: Up to 480°C (900°F)
- Mounting Dimensions: #6 screw - 6.5 mm W x 22 mm L, #8 screw - 9 mm W x 25 mm L, #10 screw - 9 mm W x 25 mm L, #6 & #8 with TT variant for rugged applications
- Wire Length Options: Standard 12, 24, 36, 60 inches, customizable over 60 inches
- Insulation: PFA rated to 260°C, optional Kapton or molded connectors available
- Glass-rated: Up to 480°C
- Connections: Various, including spade, male/women connectors, or custom terminations
- Mounting: Easily attaches to different surfaces
- Design: Rugged with stripped leads for easy installation
Buy the Omega WTK812 – Reliable Thermocouple for Industrial Applications
Order the Omega WTK812 surface temperature thermocouple online today to ensure reliable, high-accuracy temperature monitoring in your industrial processes. Designed with a rugged stainless steel washer and stripped leads for easy installation, this device is rated up to 480°C (900°F). It offers customizable lengths and various connector options to fit your specific needs. With quick online purchasing, you can enhance your project with a durable, high-performance thermocouple that ensures safety and efficiency in demanding environments—order now for fast delivery and excellent support.
Get Omega WTK812 today—built for precision and long-lasting durability in high-temperature industrial environments.
Frequently Asked Questions
Where can I buy OMEGA WTK812?
You can click on the BUY or RFQ button to purchase WTK812 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part WTK812?
You can download the WTK812 datasheet or visit the OMEGA website for support.
Who is the manufacturer of WTK812?
OMEGA
